Taiwan Semiconductor CorporationTaiwan, China

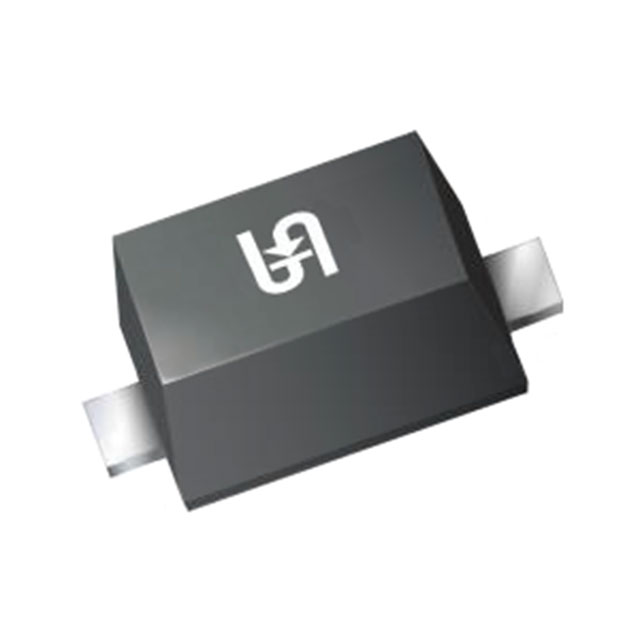

SOD-123F, 500MW, 5%, SMALL SIGNA
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage3.3 V
Tolerance5 %
Power500 mWMax
Zener impedance95 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 4.5 µA @ 1 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 95 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123F |
| Other | |
| Base Product Number | BZT52C |
| Mfr | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Series | - |
| Tolerance | ±5% |
