View full reportTechnical parameters
| Environment and package | |
|---|---|

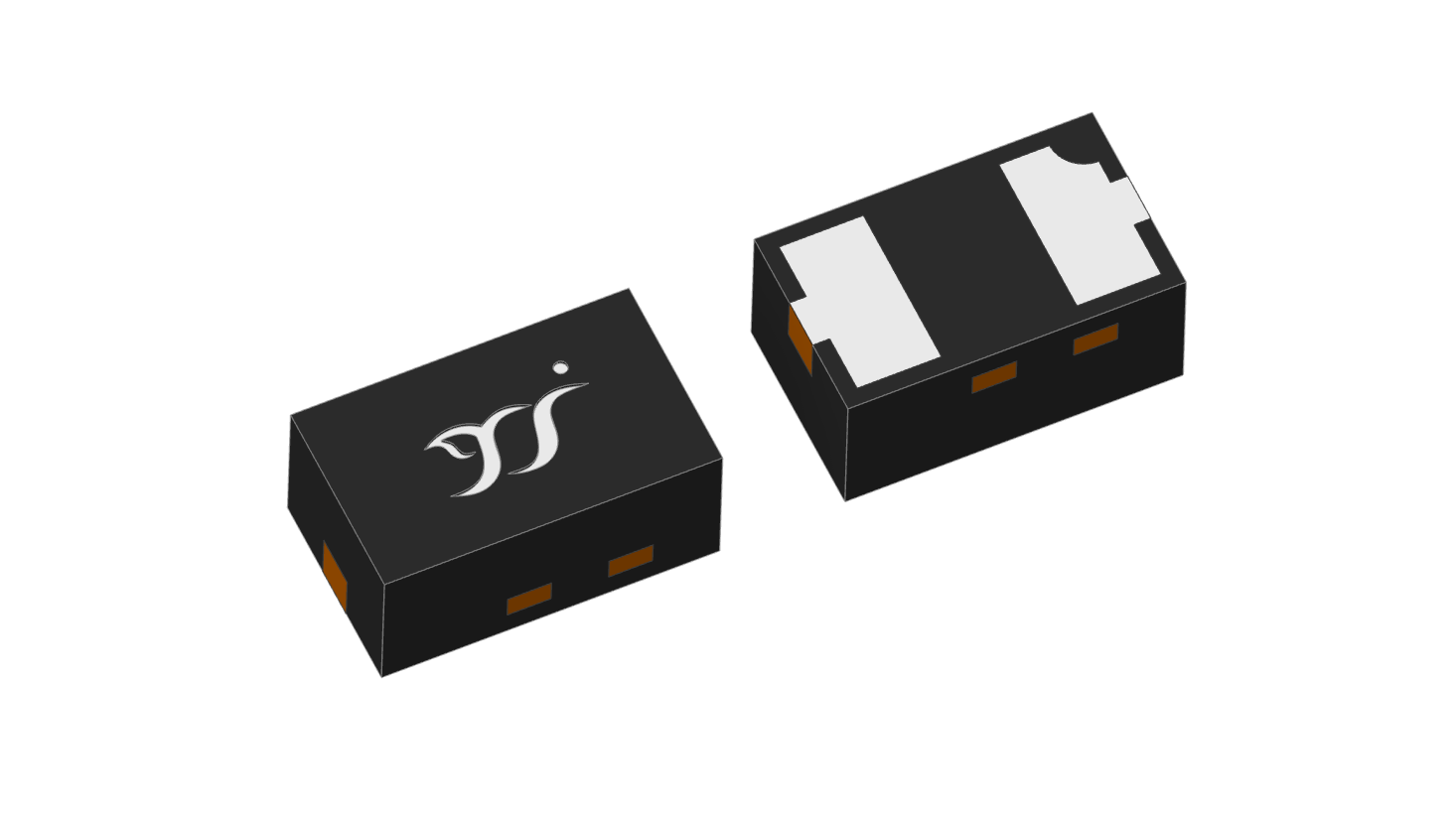

| Package | DFN1006-2L |
| Other | |
| IR@VR(uA) | 5 |
| Izk(mA) | 1 |
| IZT(mA) | 5 |
| PD(mW) | 100 |
| Status | Active |
| VR(V) | 1 |
| VZ@IZT_Max(V) | 4.39 |
| VZ@IZT_Min(V) | 4.21 |
| VZ@IZT_Nom(V) | 4.3 |
| Zzk@Izk(Ω) | 600 |
| Zzt@Izt(Ω) | 95 |
