Honeywell Sensing and Productivity SolutionsUnited States

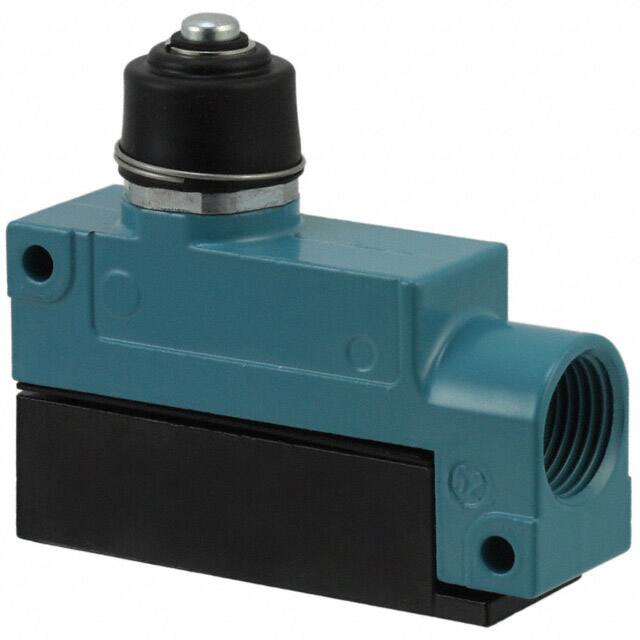

SWITCH SNAP ACTION SPDT 15A 125V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 15A (AC), 500mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -32°C~71°C |
| Package | Bulk |
| Other | |
| Actuator Type | Round (Pin Plunger) |
| Base Product Number | BZG1 |
| Circuit | SPDT |
| Differential Travel | 0.002" (0.05mm) |
| Electrical Life | - |
| Features | Actuator Seal Boot |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | Honeywell Sensing and Productivity Solutions |
| Operating Force | 255 ~ 680gf |
| Operating Position | 1.369" (34.8mm) |
| Overtravel | 0.219" (5.6mm) |
| Pretravel | 0.078" (2.0mm) |
| Product Status | Not For New Designs |
| Release Force | 113gf |
| Series | BZG |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
