Honeywell Sensing and Productivity SolutionsUnited States

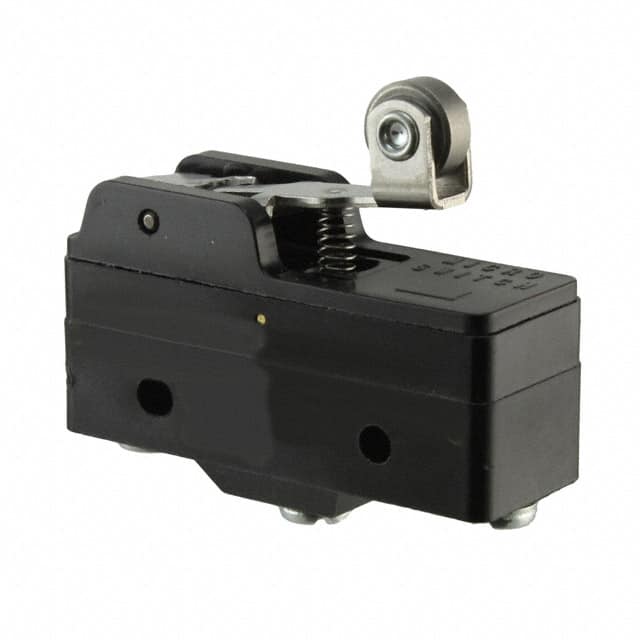

SWITCH SNAP ACTION SPDT 15A 125V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 15A (AC), 500mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -55°C~85°C |
| Package | Bulk |
| Other | |
| Actuator Type | Lever, Roller |
| Base Product Number | BZ-2 |
| Circuit | SPDT |
| Differential Travel | 0.020" (0.5mm) |
| Electrical Life | - |
| Features | - |
| Ingress Protection | - |
| Mechanical Life | 20,000,000 Cycles |
| Mfr | Honeywell Sensing and Productivity Solutions |
| Operating Force | 170gf |
| Operating Position | 1.188" (30.2mm) |
| Overtravel | 0.094" (2.4mm) |
| Pretravel | - |
| Product Status | Active |
| Release Force | 43gf |
| Series | BZ |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
