BridgeluxUnited States

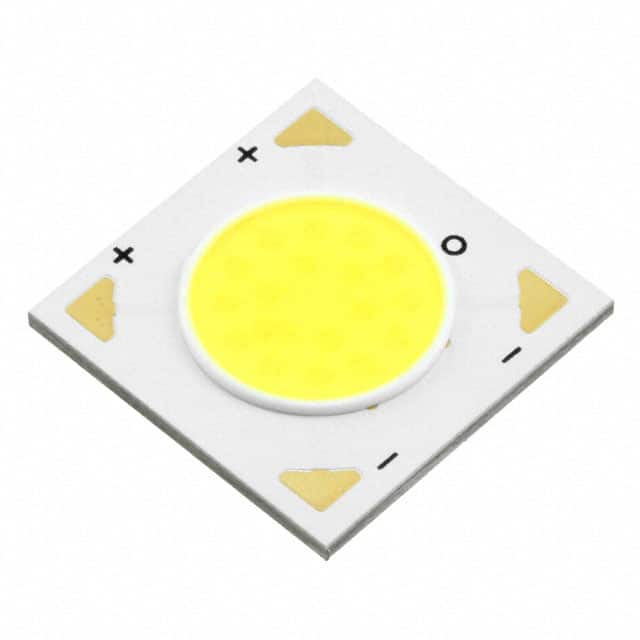

LED ARRAY 1000LM NEU WHITE COB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 700mA |
| Current - Test | 350mA |
| Lumens/Watt @ Current - Test | 135 lm/W |
| Voltage - Forward (Vf) (Typ) | 26.5V |
| Environment and package | |
| Height | 1.70mm |
| Luminous Flux @ Current/Temperature | 1253lm(Typ) |
| Package | Tray |
| Size / Dimension | 15.80mm L x 15.80mm W |
| Temperature - Test | 25°C |
| Other | |
| Base Product Number | BXRE-40 |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Color | White, Neutral |
| Configuration | Square |
| CRI (Color Rendering Index) | 80 |
| Features | - |
| Lens Type | Flat |
| Light Emitting Surface (LES) | 9.90mm Dia |
| Mfr | Bridgelux |
| Product Status | Obsolete |
| Series | V10 Array |
| Type | Chip On Board (COB) |
| Viewing Angle | 120° |
| Wavelength | - |
