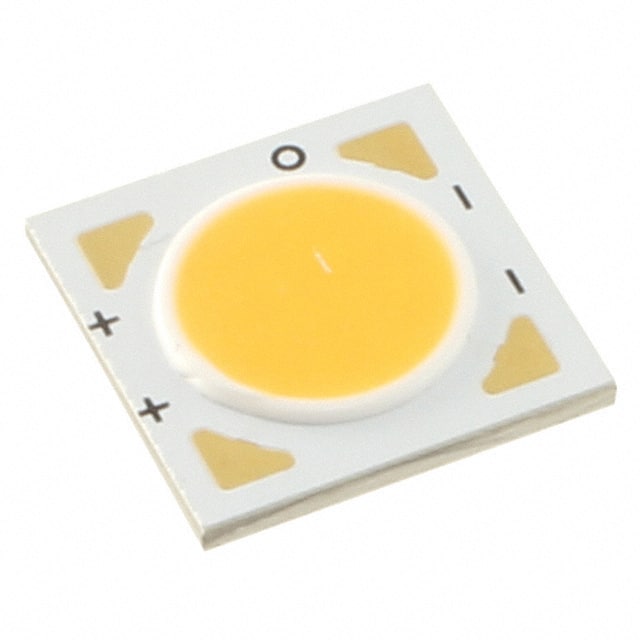

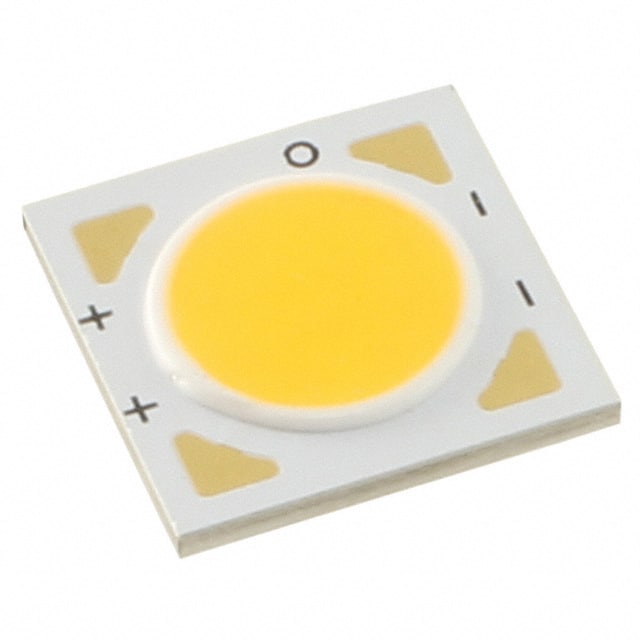

BXRE-27G0800-A-03
BridgeluxUnited States

BXRE-27G0800-A-03

ObsoleteLED Lighting - COBs, Engines, Modules, Strips

LED ARRAY 2700K 800LM WARM WHT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Max350mA
Current - Test175mA
Lumens/Watt @ Current - Test91 lm/W
Voltage - Forward (Vf) (Typ)35.6V
Environment and package
Height1.70mm
Luminous Flux @ Current/Temperature565lm(Typ)
PackageTray
Size / Dimension12.50mm L x 12.50mm W
Temperature - Test25°C
Other
Base Product NumberBXRE-27
CCT (K)2700K 3-Step MacAdam Ellipse
ColorWhite, Warm
ConfigurationSquare
CRI (Color Rendering Index)90
Features-
Lens TypeFlat
Light Emitting Surface (LES)8.10mm Dia
MfrBridgelux
Product StatusObsolete
SeriesV8 Array
TypeChip On Board (COB)
Viewing Angle120°
Wavelength-

Documents

No documents are linked to this part yet.
