BridgeluxUnited States

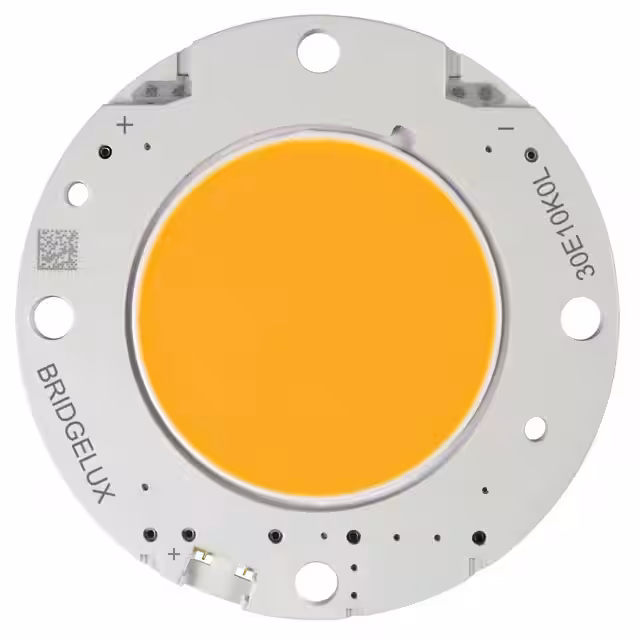

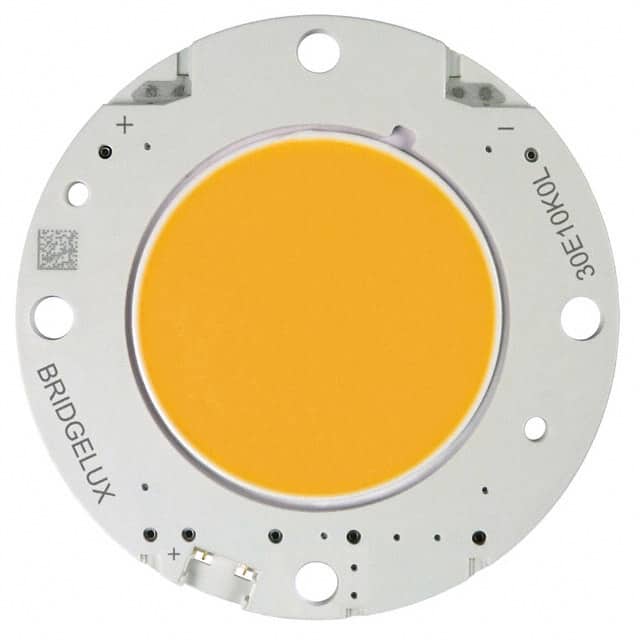

LED ARRAY 10000LM WARM WHITE COB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 4.2A |
| Current - Test | 2.1A |
| Lumens/Watt @ Current - Test | 114 lm/W |
| Voltage - Forward (Vf) (Typ) | 38V |
| Environment and package | |
| Height | 1.90mm |
| Luminous Flux @ Current/Temperature | 9060lm(Typ) |
| Package | Tray |
| Size / Dimension | 49.20mm Dia |
| Temperature - Test | 25°C |
| Other | |
| Base Product Number | BXRC-30 |
| CCT (K) | 3000K 2-Step MacAdam Ellipse |
| Color | White, Warm |
| Configuration | Round |
| CRI (Color Rendering Index) | 90 |
| Features | With Connector |
| Lens Type | Flat |
| Light Emitting Surface (LES) | 29.20mm Dia |
| Mfr | Bridgelux |
| Product Status | Obsolete |
| Series | Vero® 29 Array |
| Type | Chip On Board (COB) |
| Viewing Angle | 120° |
| Wavelength | - |
