NXP SemiconductorsNetherlands

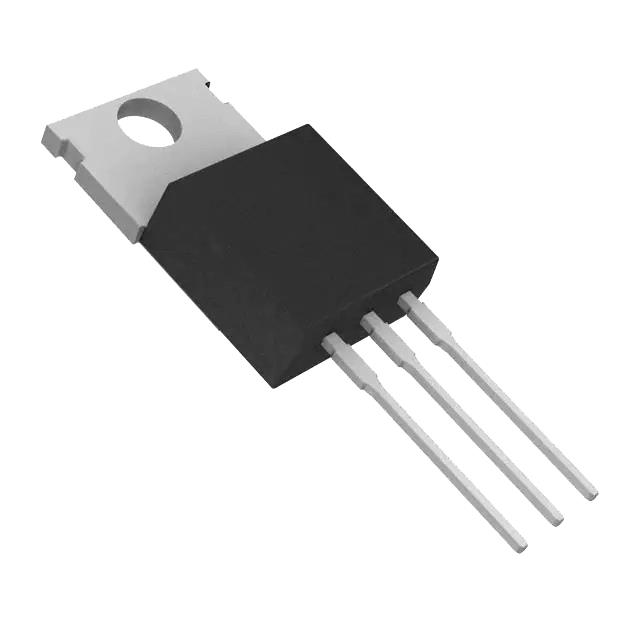

TRIAC 600V 16A TO220AB
All alternatives
View full reportTechnical parameters
Key specs
Off-state voltage600 V
On-state current16 AMax
Gate trigger current25 mAMax
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 25 mA |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 140A, 150A |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 125°C (TJ) |
| Package | Bulk |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Other | |
| Configuration | Single |
| Mfr | NXP Semiconductors |
| Product Status | Active |
| Series | - |
| Triac Type | Standard |
