TE IntercontecGermany

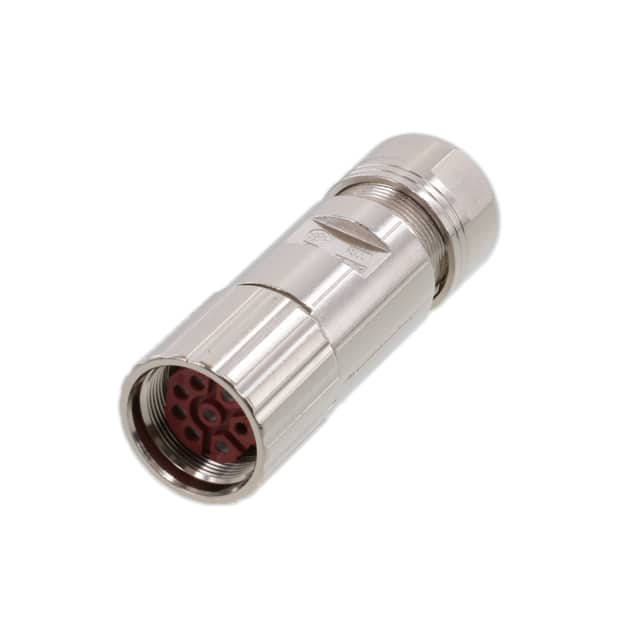

CONN PLG HSG FMALE 8POS INLINE
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Contact Size | - |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -20°C~130°C |
| Package | Box |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Other | |
| Base Product Number | BSTA078 |
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | - |
| Fastening Type | Push-Twist |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Housing Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp |
| Ingress Protection | IP66/IP67 - Dust Tight, Water Resistant, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Intercontec |
| Note | Contacts Not Included |
| Number of Positions | 8 (4 + 3 Power + PE) |
| Orientation | Keyed |
| Product Status | Active |
| Series | - |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Type | For Female Sockets |
