Yangjie TechnologyChina

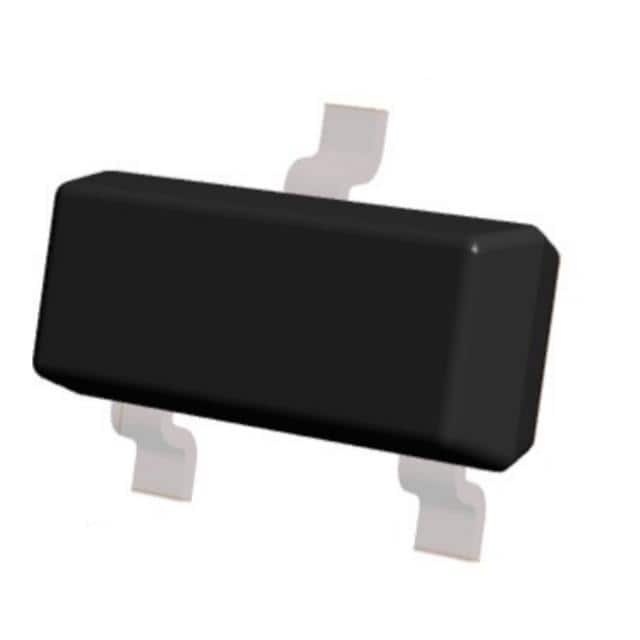

SOT-23 P -60V -0.17A Transistor
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage50 V
Continuous drain current130 mA
On-resistance8 ΩMax · 100mA
Gate threshold voltage2 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 130mA |
| Drain to Source Voltage (Vdss) | 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Power Dissipation (Max) | 225mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| FET Feature | - |
| FET Type | P-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 30 pF @ 25 V |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 8Ohm @ 100mA, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
