Nexperia USA Inc.Netherlands

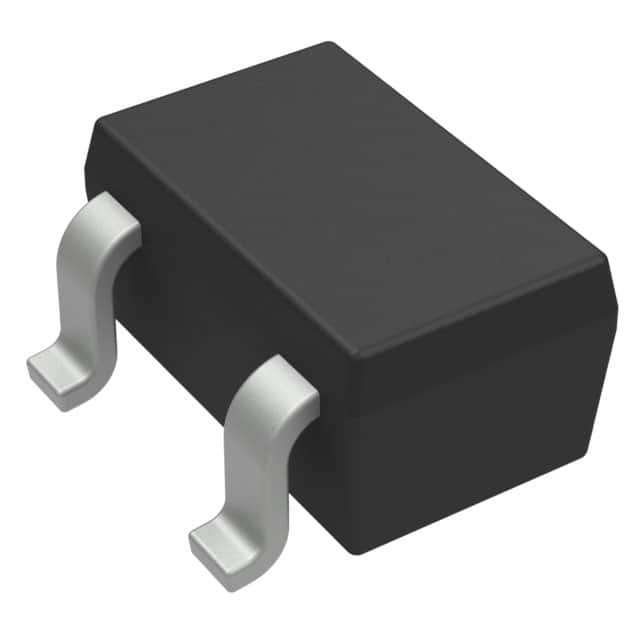

MOSFET N-CH 60V 320MA SOT323
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage60 V
Continuous drain current320 mA
On-resistance1.6 ΩMax · 300mA
Gate threshold voltage1.5 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 320mA (Ta) |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 260mW (Ta), 830mW (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Other | |
| Base Product Number | BSS138 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 0.8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 10 V |
| Mfr | Nexperia USA Inc. |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 300mA, 10V |
| Series | Automotive, AEC-Q101, TrenchMOS™ |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
