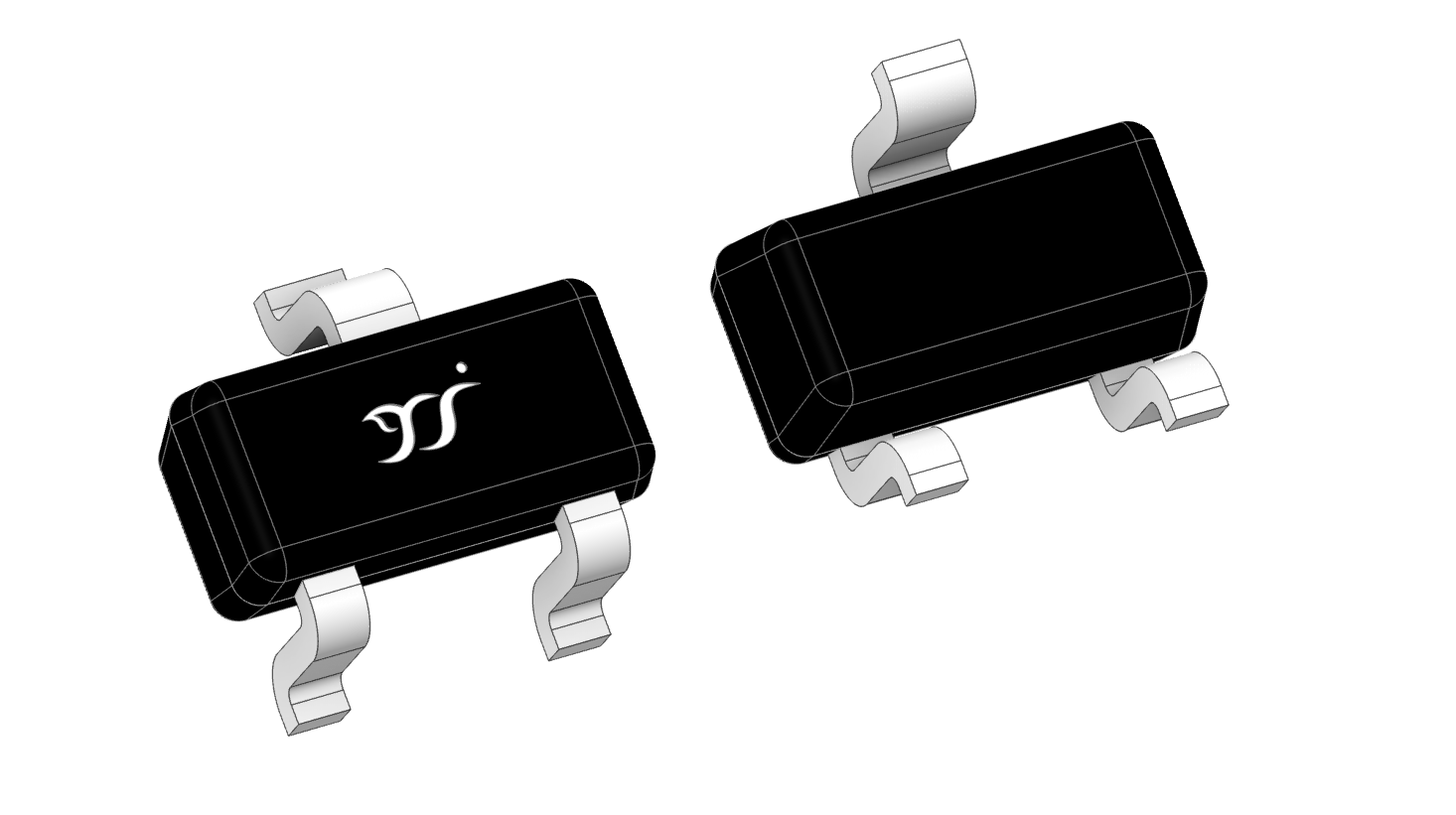

BSS138E
Yangjie TechnologyChina

BSS138E

ActiveSingle FETs, MOSFETsSOT-523
See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Environment and package
GradeIndustrial
PackageSOT-523
Other
Ciss_Typ(pF)36
ConfigurationSingle
Coss_Typ(pF)5.8
Crss_Typ(pF)2.4
ESDNo
ID (A)0.3
PD (W)0.32
Qg_Typ(nC)1.7
Rdson@VGS10V_Max(mΩ)1000
Rdson@VGS10V_TYP(mΩ)700
Rdson@VGS2.5V_Max(mΩ)/
Rdson@VGS2.5V_TYP(mΩ)/
Rdson@VGS4.5V_Max(mΩ)1100
Rdson@VGS4.5V_TYP(mΩ)780
StatusActive
Tj (℃）150
TypeN
VDSS (V)50
VGS (V)±20
Vth_Typ(V)1.2
