NXP USA Inc.Netherlands
JFET N-CH 40V 0.25W SOT23
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Drain (Id) - Max | 20 mA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 50 mA @ 15 V |
| Drain to Source Voltage (Vdss) | 40 V |
| Power - Max | 250 mW |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Voltage - Cutoff (VGS off) @ Id | 4 V @ 0.5 nA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

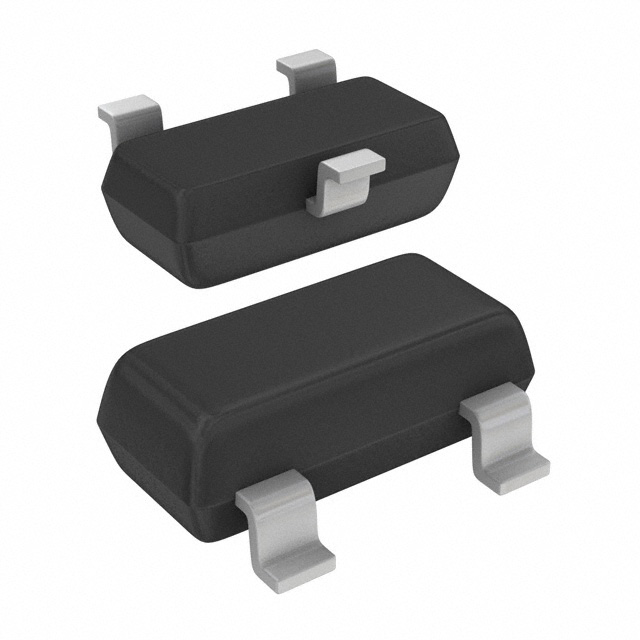

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 (TO-236AB) |
| Other | |
| Base Product Number | BSR5 |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Resistance - RDS(On) | 25 Ohms |
| Series | - |
