Infineon TechnologiesGermany
MOSFET 2N-CH 30V 2.3A 6TSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 2.3A |
| Drain to Source Voltage (Vdss) | 30V |
| Power - Max | 500mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

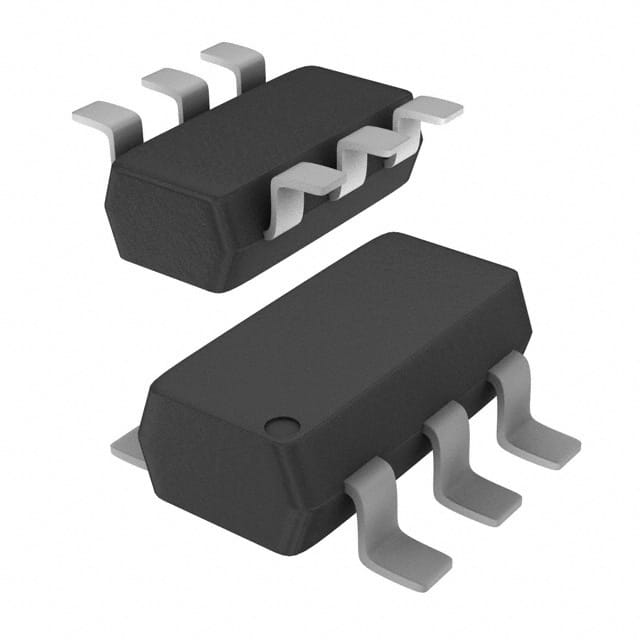

| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | PG-TSOP6-6 |
| Other | |
| Base Product Number | BSL306 |
| FET Feature | Logic Level Gate |
| FET Type | 2 N-Channel (Dual) |
| Gate Charge (Qg) (Max) @ Vgs | 1.6nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 275pF @ 15V |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 57mOhm @ 2.3A, 10V |
| Series | OptiMOS™ |
| Vgs(th) (Max) @ Id | 2V @ 11µA |
