Infineon TechnologiesGermany

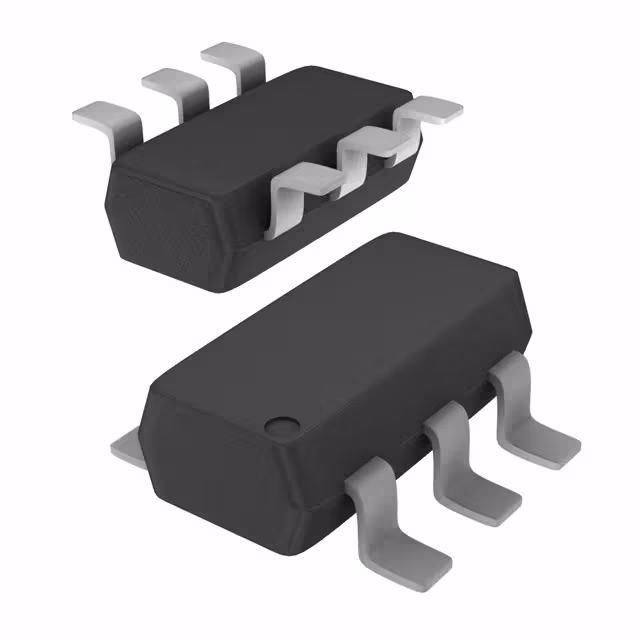

MOSFET 2P-CH 20V 1.5A TSOP-6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1.5A |
| Drain to Source Voltage (Vdss) | 20V |
| Power - Max | 500mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | PG-TSOP6-6 |
| Other | |
| Base Product Number | BSL215 |
| FET Feature | Logic Level Gate |
| FET Type | 2 P-Channel (Dual) |
| Gate Charge (Qg) (Max) @ Vgs | 3.55nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 346pF @ 15V |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 1.5A, 4.5V |
| Series | OptiMOS™ |
| Vgs(th) (Max) @ Id | 1.2V @ 11µA |
