Infineon TechnologiesGermany
MOSFET 2N-CH 20V 2.1A 6TSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 2.1A |
| Drain to Source Voltage (Vdss) | 20V |
| Power - Max | 500mW |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |

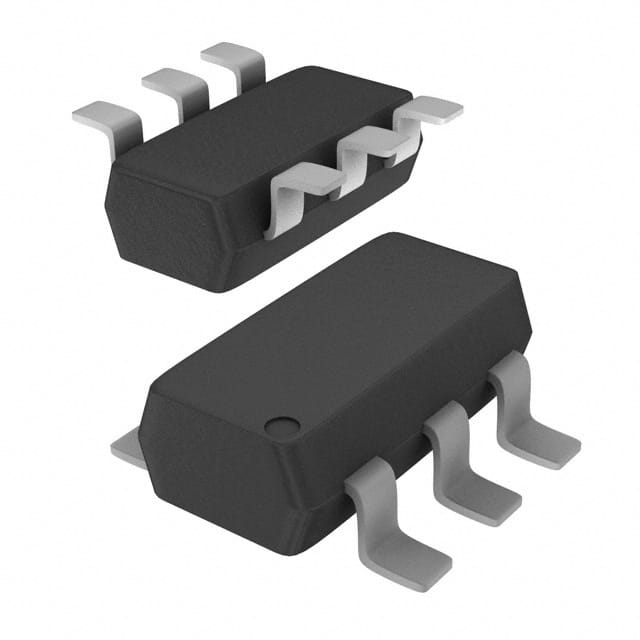

| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | PG-TSOP-6-1 |
| Other | |
| FET Feature | Logic Level Gate, 2.5V Drive |
| FET Type | 2 N-Channel (Dual) |
| Gate Charge (Qg) (Max) @ Vgs | 2.1nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 419pF @ 10V |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2.1A, 4.5V |
| Series | Automotive, AEC-Q101, OptiMOS™ |
| Vgs(th) (Max) @ Id | 1.2V @ 11µA |
