Vishay SiliconixUnited States

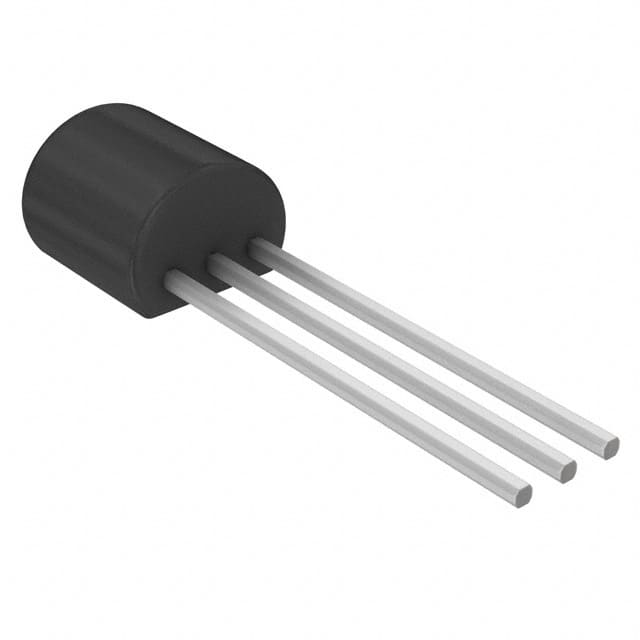

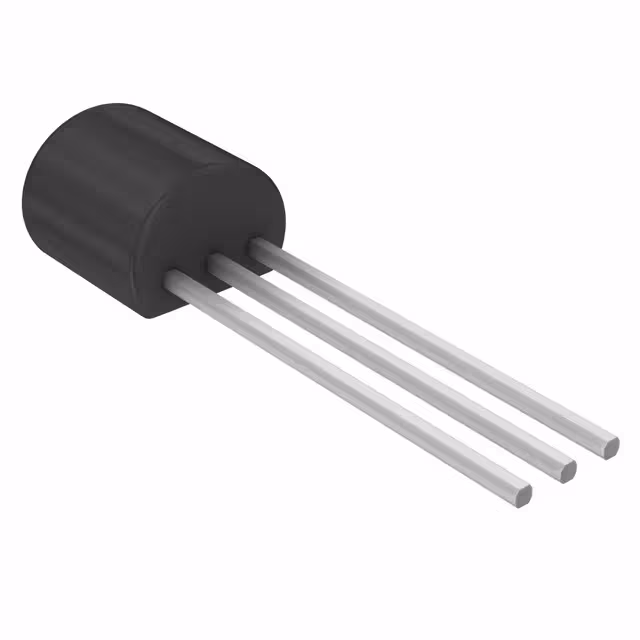

MOSFET P-CH 60V 270MA TO92-18RM
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage60 V
Continuous drain current270 mA
On-resistance6 ΩMax · 500mA
Gate threshold voltage3 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 270mA (Ta) |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 800mW (Ta) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-18RM |
| Other | |
| Base Product Number | BS250 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 15 V |
| Mfr | Vishay Siliconix |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 6Ohm @ 500mA, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
