Ampleon USA Inc.Netherlands
RF FET 2 NC 65V 19DB SOT161A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 8A |
| Current - Test | 50 mA |
| Power - Output | 60W |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| AC and DC characteristics | |
| Frequency | 175MHz |
| Gain | 19dB |
| Noise Figure | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Package | Tray |

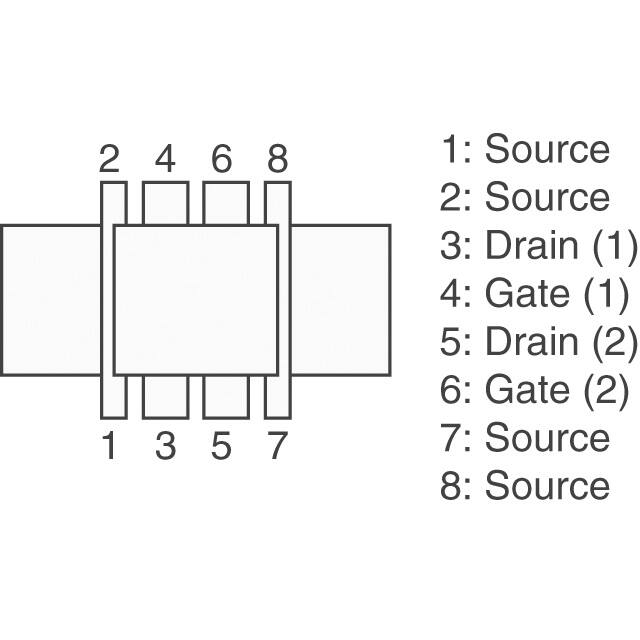

| Package / Case | SOT-161A |
| Supplier Device Package | CDFM8 |
| Other | |

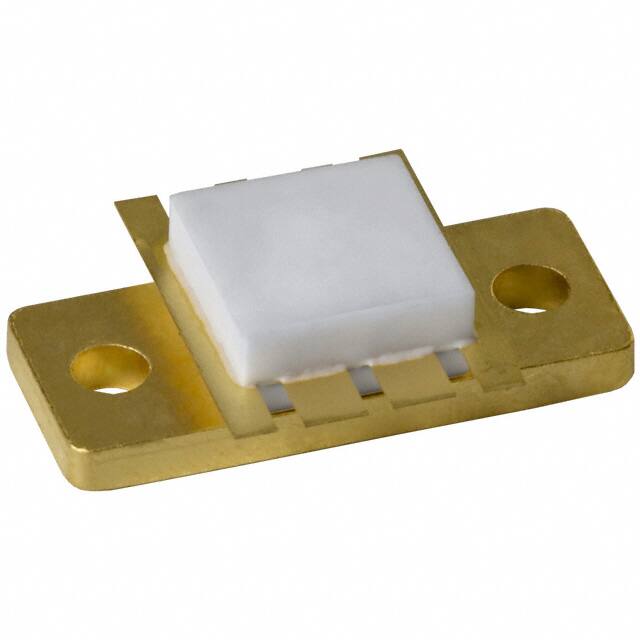

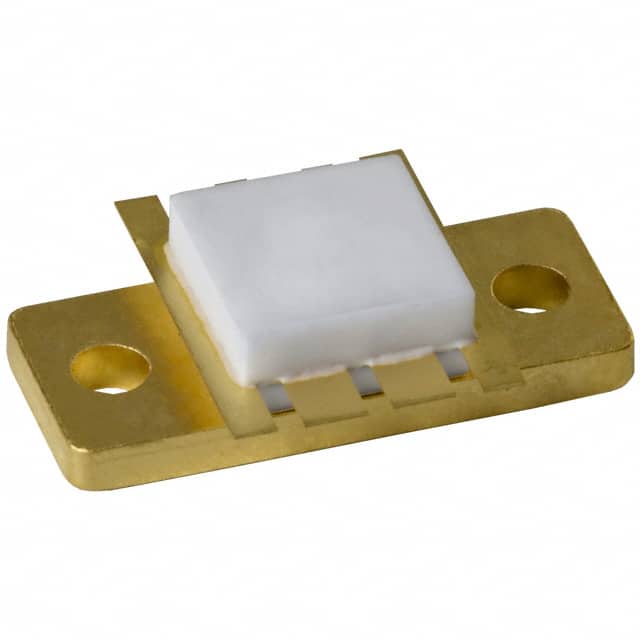

| Base Product Number | BLF246 |
| Mfr | Ampleon USA Inc. |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | 2 N-Channel (Dual) Common Source |
