View full reportTechnical parameters
| Power | |
|---|---|
| ID-最大漏极电流 | 30A |
| Id-额定电流 | 30A |
| VDSS-最大漏源电压 | 60V |
| Vgs(th)-门槛电压 | 3V |
| AC and DC characteristics | |
| RDS(on)-漏源导通阻抗 | 50mΩ |
| Ron-最大导通阻抗 | 50mΩ |
| Environment and package | |

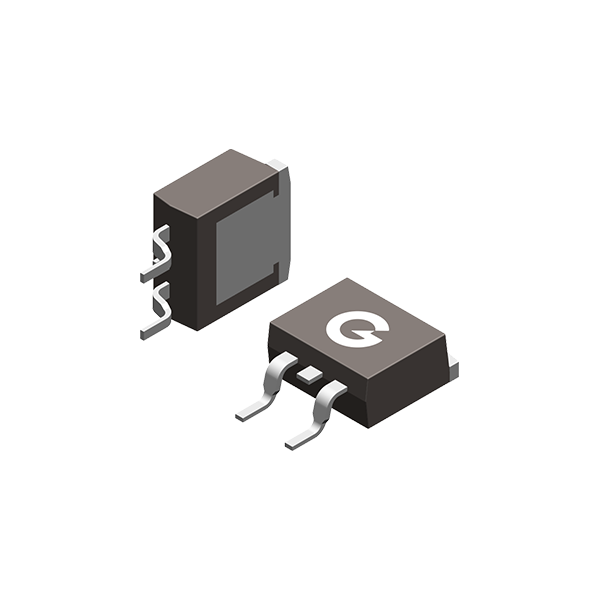

| 封装类型1 | TO263 |
| 最大工作温度 | 150℃ |
| 最小工作温度 | -55℃ |
| Other | |
| Pd-功率耗散 | 78W |
| Pd-最大功率耗散 | 78W |
| Qg-栅极电荷 | NnC |
| Vdss-漏源耐压 | 60V |
| Vgs-栅源耐压 | 20V |
| 内置ESD保护二极管 | 0 |
| 内置整流二极管 | 0 |
| 引脚数量1 | 3 |
| 集成ESD保护二极管 | 0 |
| 集成整流二极管 | 0 |
