View full reportTechnical parameters
| Power | |
|---|---|
| Id-额定电流 | 6A |
| Vgs(th)-门槛电压 | 2.5V |
| AC and DC characteristics | |
| Ron-最大导通阻抗 | 50mΩ |
| Environment and package | |

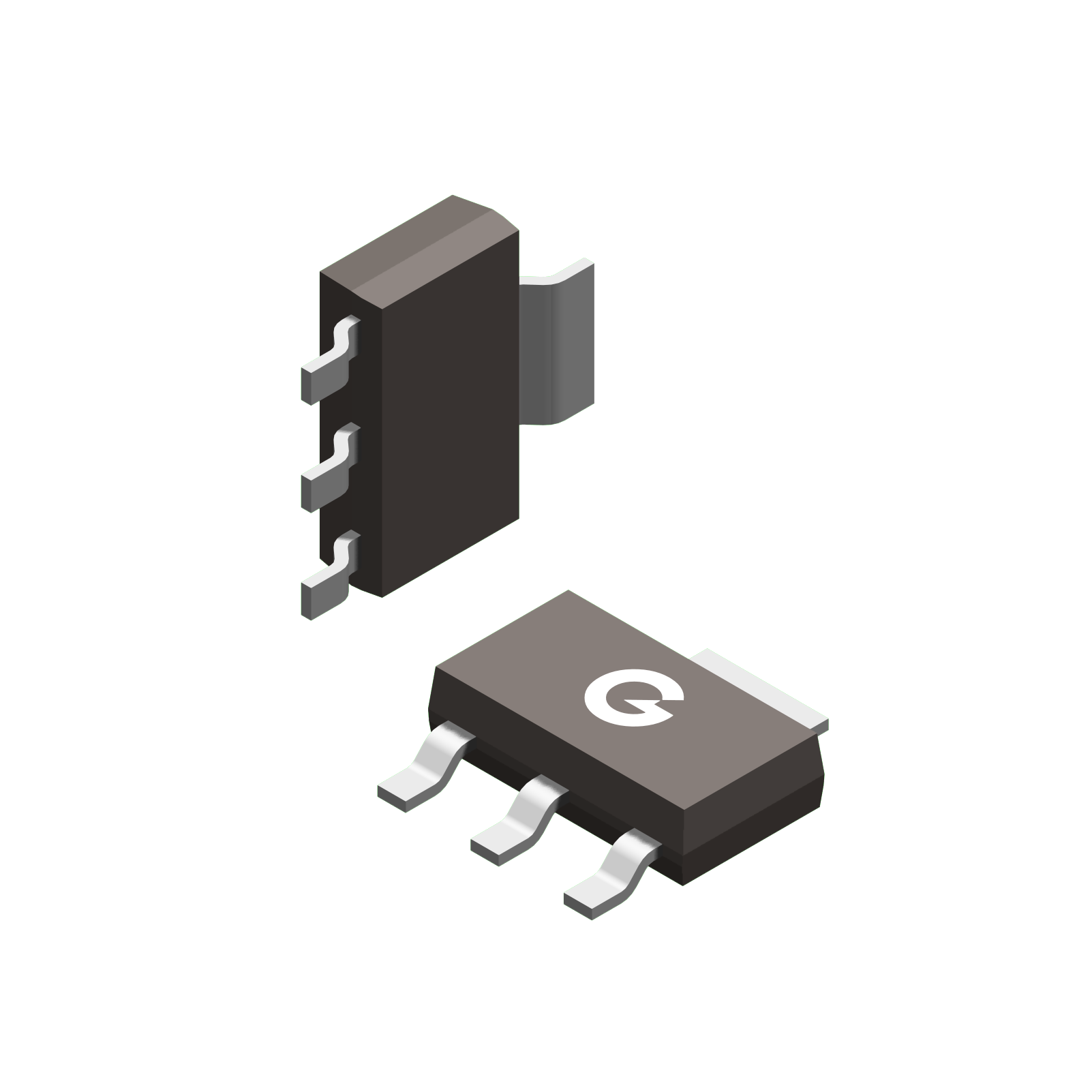

| 封装类型1 | SOT223 |
| 最大工作温度 | 150℃ |
| 最小工作温度 | -55℃ |
| Other | |
| Pd-最大功率耗散 | 2W |
| Qg-栅极电荷 | NnC |
| Vdss-漏源耐压 | 40V |
| Vgs-栅源耐压 | 20V |
| 引脚数量1 | 4 |
| 集成ESD保护二极管 | 0 |
| 集成整流二极管 | 0 |
Documents
DatasheetDatasheet · 399.6 KB · 2026-09-22EnvironmentalEnvironmental · 1.5 MB · 2026-09-22Package DrawingPackage Drawing · 1019.6 KB · 2026-09-22EnvironmentalEnvironmental · 874.0 KB · 2026-09-22Package DrawingPackage Drawing · 533.4 KB · 2026-09-22Package DrawingPackage Drawing · 399.8 KB · 2026-09-22
