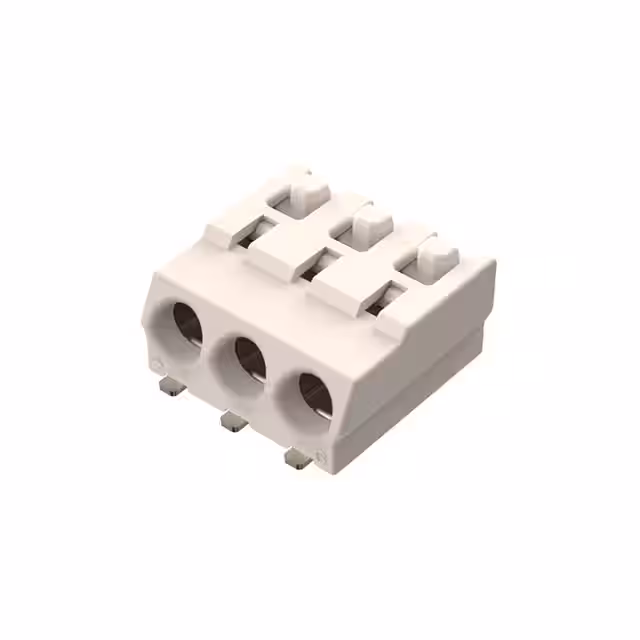

WIRE TRAP PUSH IN, SMT, 2.40MM P
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -25°C~105°C |
| Package | Tape & Reel (TR) |
| Other | |
| Base Product Number | BL300 |
| Connector Type | Receptacle, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Fastening Type | - |
| Features | - |
| Housing Color | Cream |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | GCT |
| Number of Positions | 3 |
| Pitch | 0.094" (2.40mm) |
| Product Status | Obsolete |
| Series | BL300 |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge | 22-24 AWG |
