APEM Inc.France

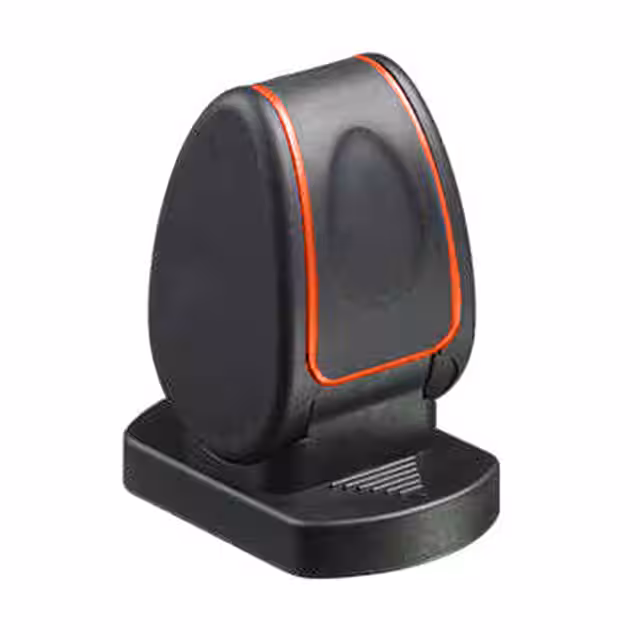

SWITCH JOYSTICK PADDLE HALL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage - Supply | 5VDC |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C~70°C |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 21.00mm x 7.00mm |
| Other | |
| Actuator Type | Paddle |
| Base Product Number | BH140A01BK |
| Contact Finish | - |
| Contact Material | - |
| Electrical Life | 10,000,000 Cycles |
| Features | - |
| Functions, Extra | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10,000,000 Cycles |
| Mfr | APEM Inc. |
| Operating Force | - |
| Output | Analog (Hall Effect) |
| Product Status | Obsolete |
| Series | BH |
| Switch Function | 2-Way Directional |
| Termination Style | Connector |
| Type | Joystick, 1 - Axis |
