NXP USA Inc.Netherlands
RF TRANS PNP 12V 5GHZ TO236AB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 35mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 30mA, 5V |
| Frequency - Transition | 5GHz |
| Gain | - |
| Noise Figure (dB Typ @ f) | 2.4dB @ 500MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

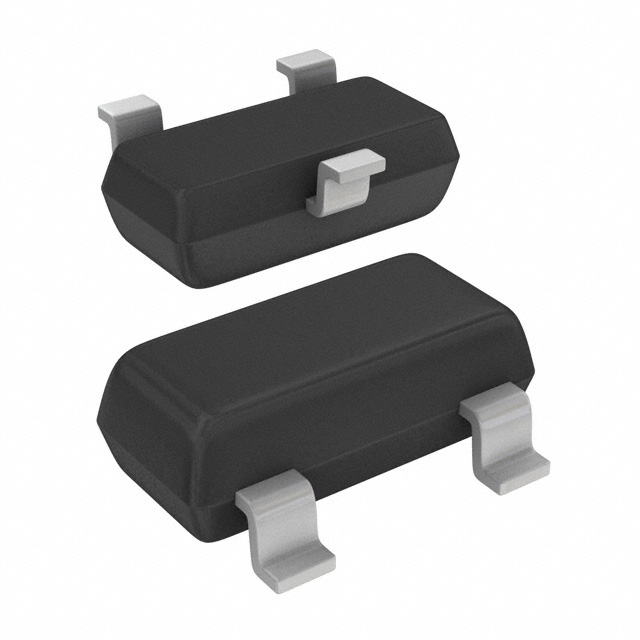

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 (TO-236AB) |
| Other | |
| Base Product Number | BFT93 |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
