Infineon TechnologiesGermany

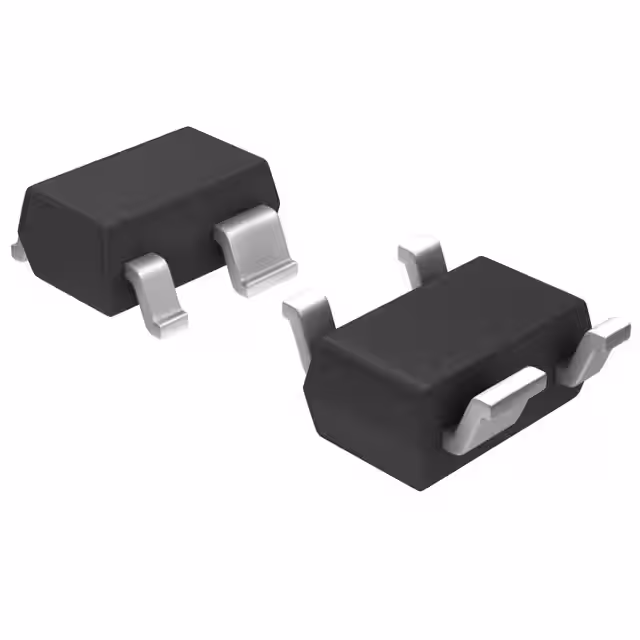

RF TRANS NPN 5V 24GHZ SOT343-4
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 450mW |
| Voltage - Collector Emitter Breakdown (Max) | 5V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 50mA, 4V |
| Frequency - Transition | 24GHz |
| Gain | 15.5dB |
| Noise Figure (dB Typ @ f) | 1.25dB @ 1.8GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-82A, SOT-343 |
| Supplier Device Package | PG-SOT343-4-2 |
| Other | |
| Base Product Number | BFP450 |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
