Infineon TechnologiesGermany

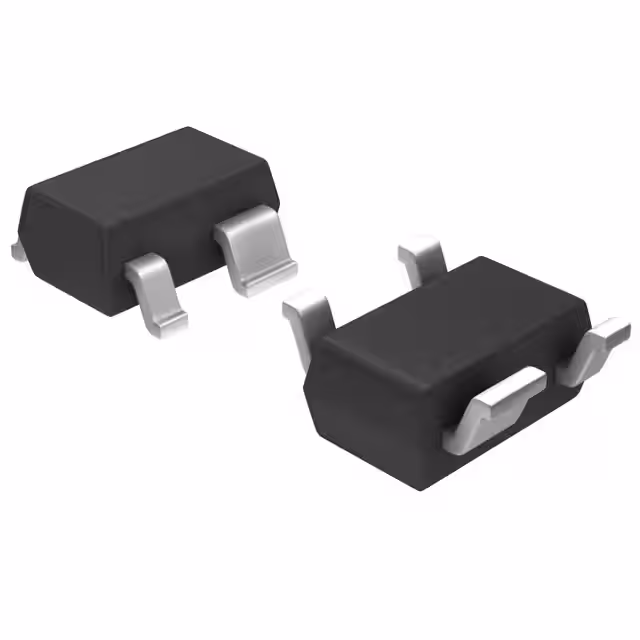

RF TRANS NPN 12V 8GHZ SOT343-4
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 35mA |
| Power - Max | 250mW |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 10mA, 8V |
| Frequency - Transition | 8GHz |
| Gain | 22dB |
| Noise Figure (dB Typ @ f) | 0.9dB ~ 1.3dB @ 900MHz ~ 1.8GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-82A, SOT-343 |
| Supplier Device Package | PG-SOT343-3D |
| Other | |
| Base Product Number | BFP182 |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
