Infineon TechnologiesGermany

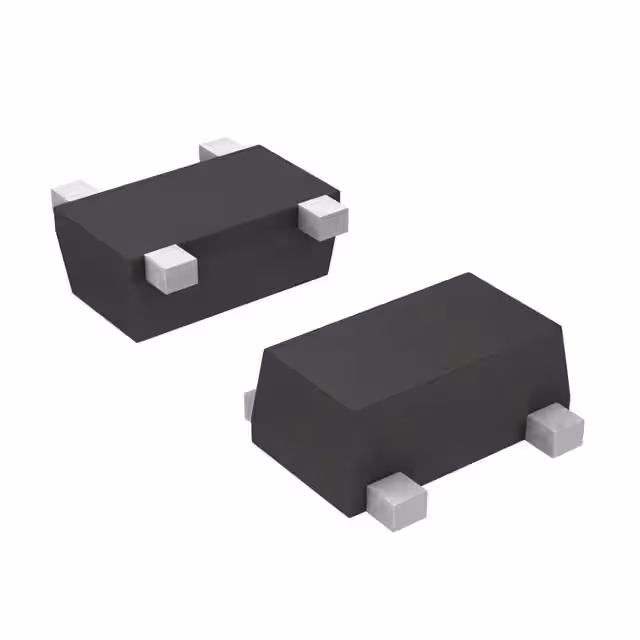

RF TRANS NPN 4.5V 42GHZ 4TSFP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 150mA |
| Power - Max | 500mW |
| Voltage - Collector Emitter Breakdown (Max) | 4.5V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 80mA, 3V |
| Frequency - Transition | 42GHz |
| Gain | 11dB ~ 21.5dB |
| Noise Figure (dB Typ @ f) | 0.8dB ~ 1.9dB @ 1.8GHz ~ 6GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4-SMD, Flat Leads |
| Supplier Device Package | 4-TSFP |
| Other | |
| Base Product Number | BFP 650 |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
