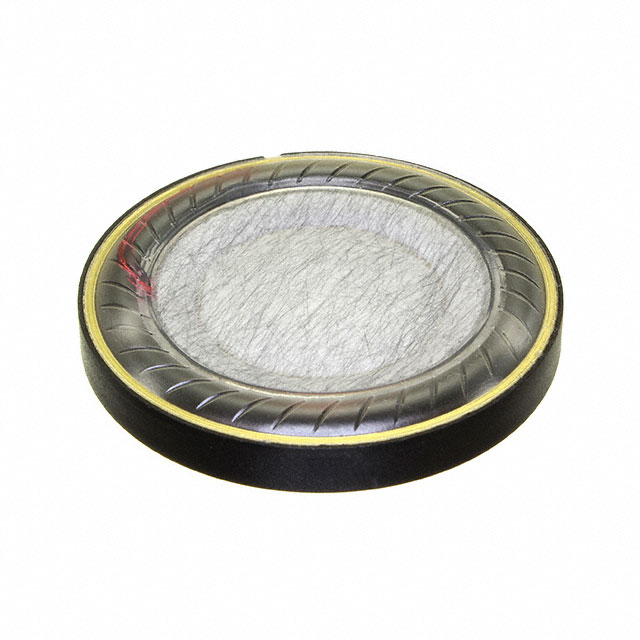

BFC-D45-7-32-012
Glass Acoustic Innovations Co. Ltd.Taiwan, China

BFC-D45-7-32-012

Speakers

SPEAKR 32OHM 40MW TOP PORT 113DB

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power - Max100 mW
Power - Rated40 mW
AC and DC characteristics
Frequency Range10 Hz ~ 20 kHz
Impedance32 Ohms
Environment and package
Height - Seated (Max)0.291" (7.40mm)
Size / Dimension1.575" Dia (40.00mm)
Other
Efficiency - dBA113.00
Efficiency - Testing-
Efficiency - TypeSound Pressure Level (SPL)
Ingress Protection-
ManufacturerGlass Acoustic Innovations Co. Ltd.
Material - MagnetNd-Fe-B
PackagingBox
Part StatusObsolete
Port LocationTop
Series-
ShapeRound
TechnologyMagnetic
TerminationSolder Pads
TypeGeneral Purpose

Documents

DatasheetDatasheet · 757.7 KB · 2026-09-21
Open document center
