Delta ElectronicsTaiwan, China

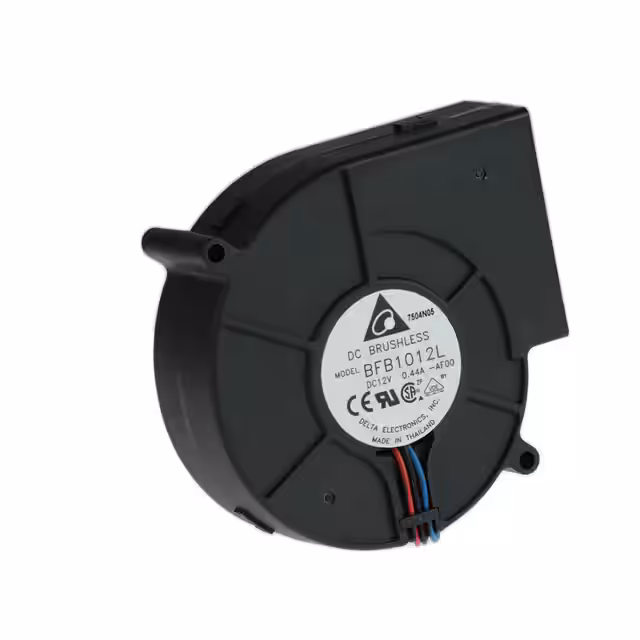

FAN BLOWER 97.8X33MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.370A |
| Power (Watts) | 4.4 W |
| Voltage Range | 3.5 ~ 13.2VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 49.5dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Operating Temperature | 14~140°F(-10~60°C) |
| Package | Box |
| Size / Dimension | Rectangular/Rounded - 97.8mm L x 95.5mm H |
| Other | |
| Air Flow | 23.2 CFM (0.650m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | BFB1012 |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | Delta Electronics |
| Product Status | Active |
| RPM | 2700 RPM |
| Series | BFB |
| Static Pressure | 0.585 in H2O (145.7 Pa) |
| Termination | 3 Wire Leads |
| Weight | 0.397 lb (180.08 g) |
| Width | 33.00mm |
