Rohm SemiconductorJapan
IC REG BUCK ADJ 800MA 8HSON
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.7 ~ 4.5 V
Output voltage1 ~ 1.5 V
Output current800 mAMax
Switching frequency1 MHz
| Power | |
|---|---|
| Current - Output | 800mA |
| Voltage - Input (Max) | 4.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Max) | 1.5V |
| Voltage - Output (Min/Fixed) | 1V |
| AC and DC characteristics | |
| Frequency - Switching | 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) |

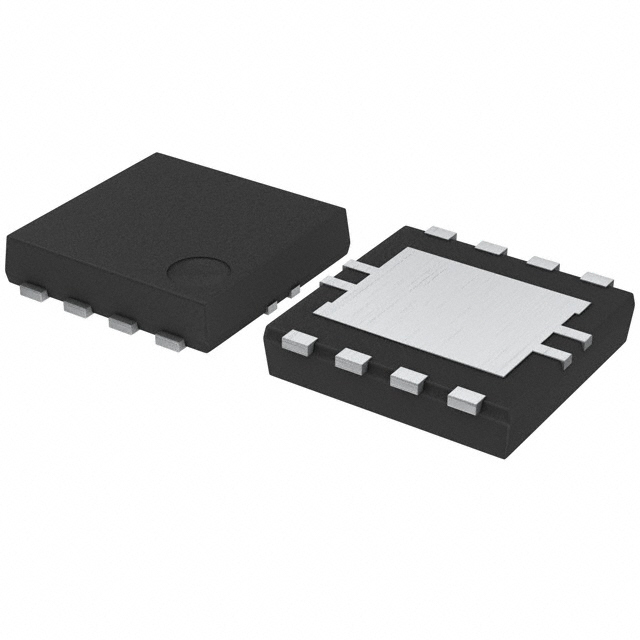

| Package / Case | 8-PowerUDFN |
| Supplier Device Package | 8-HSON |
| Other | |
| Base Product Number | BD9120 |
| Function | Step-Down |
| Mfr | Rohm Semiconductor |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Not For New Designs |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck |
Documents
No documents are linked to this part yet.
