onsemiUnited States

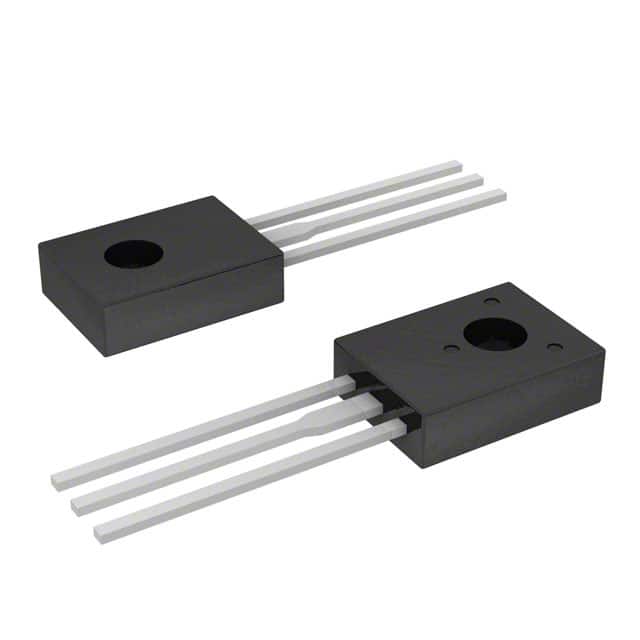

TRANS PNP 80V 4A TO126-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage80 V
Collector current4 AMax
DC current gain40500mA
Power36 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100µA |
| Current - Collector (Ic) (Max) | 4 A |
| Power - Max | 36 W |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 500mA, 1V |
| Frequency - Transition | 3MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126-3 |
| Other | |
| Base Product Number | BD442 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 800mV @ 200mA, 2A |
