onsemiUnited States

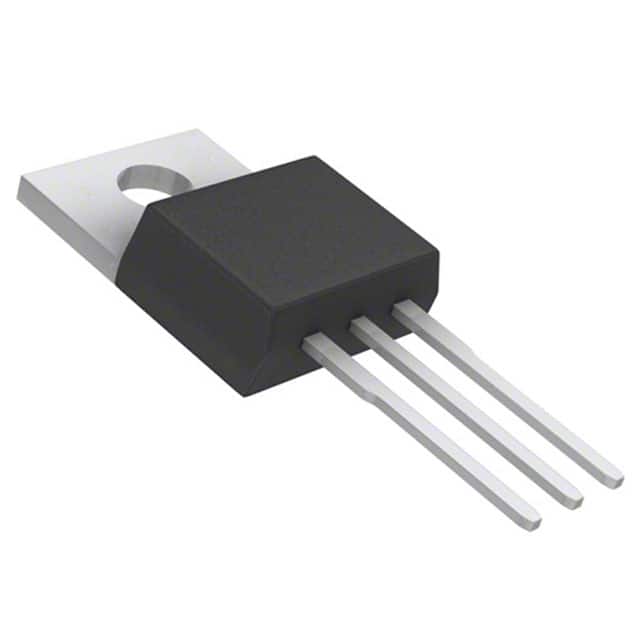

TRANS NPN 80V 6A TO220-3
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage80 V
Collector current6 AMax
DC current gain153A
Power65 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 700µA |
| Current - Collector (Ic) (Max) | 6 A |
| Power - Max | 65 W |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 3A, 4V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | BD243 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 1A, 6A |
