Fanstel Corp.United States

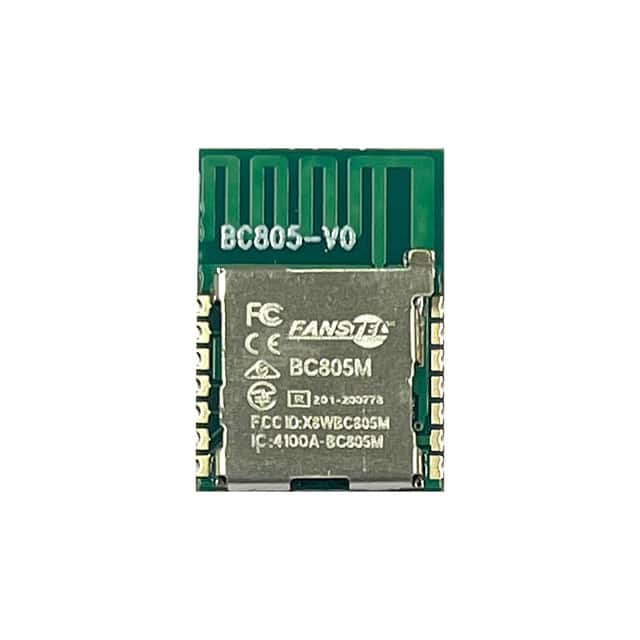

BC805M
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 4.6mA |
| Current - Transmitting | 4.6mA |
| Power - Output | 4dBm |
| Voltage - Supply | 1.7V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 192kB Flash, 24kB RAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 14-SMD Module |
| Other | |
| Antenna Type | PCB Trace |
| Base Product Number | BC805 |
| Data Rate | 2Mbps |
| Mfr | Fanstel Corp. |
| Modulation | - |
| Product Status | Active |
| Protocol | Bluetooth v5.2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, GPIO, I²C, SPI, UART |
| Series | - |
| Utilized IC / Part | nRF52805 |
