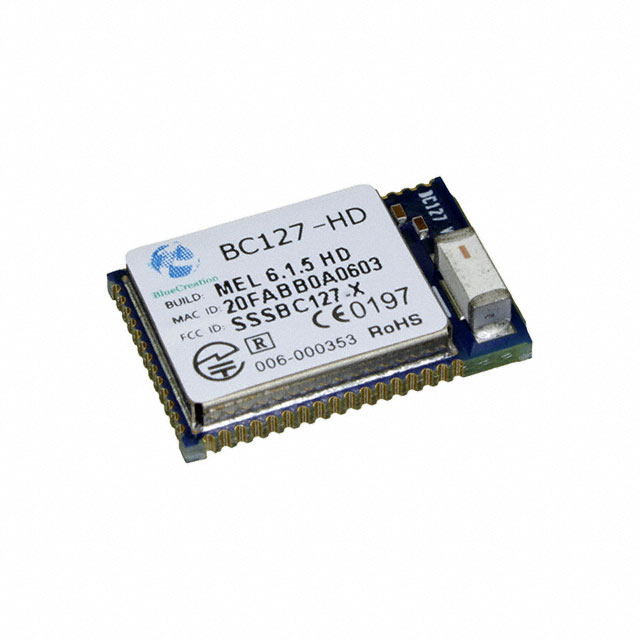

BC127-HD_1103709
Sierra WirelessCanada

BC127-HD_1103709

ObsoleteRF Transceiver Modules and Modems

RF TXRX MODULE BT CHIP SMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Receiving15mA
Current - Transmitting15mA
Power - Output10dBm
Voltage - Supply3.3V ~ 4.7V
AC and DC characteristics
Frequency2.4GHz ~ 2.48GHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 85°C
PackageTape & Reel (TR) Cut Tape (CT) Digi-Reel®
Package / CaseModule
Other
Antenna TypeIntegrated, Chip
Base Product NumberBC127
Data Rate3Mbps
DigiKey ProgrammableNot Verified
MfrSierra Wireless
Modulation8PSK, GFSK, QPSK
Product StatusObsolete
ProtocolBluetooth v4.2
RF Family/StandardBluetooth
Sensitivity-88dBm
Serial InterfacesI2C, I2S, SPI, UART, USB
SeriesBC - AirPrime®

Documents

No documents are linked to this part yet.
