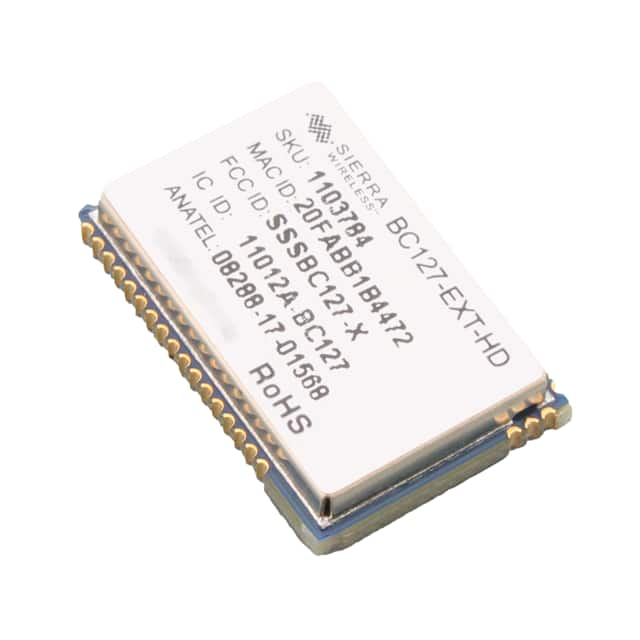

BC127-EXT-HD_1103784
Sierra WirelessCanada

BC127-EXT-HD_1103784

ObsoleteRF Transceiver Modules and Modems

RF TXRX MOD BLUETOOTH CAST SMD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Current - Receiving15mA
Current - Transmitting15mA
Power - Output10dBm
Voltage - Supply3.3V ~ 4.7V
AC and DC characteristics
Frequency2.4GHz ~ 2.48GHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / CaseModule
Other
Antenna TypeAntenna Not Included, Castellation
Base Product NumberBC127
Data Rate3Mbps
MfrSierra Wireless
Modulation8PSK, GFSK, QPSK
Product StatusObsolete
ProtocolBluetooth v4.2
RF Family/StandardBluetooth
Sensitivity-88dBm
Serial InterfacesI²C, I²S, SPI, UART, USB
SeriesBC - AirPrime®
