Nexperia USA Inc.Netherlands
High-voltage switching diode
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Automotive qualified | N |
| Halogen free | Yes |

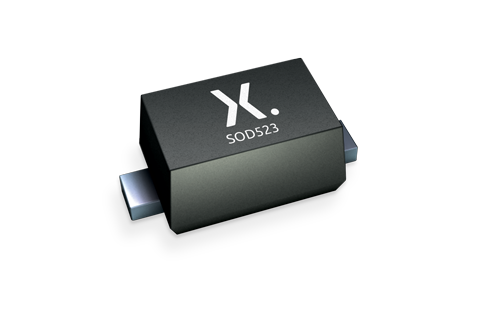

| Package name | SC-79 |
| Package version | SOD523 |
| RoHS | Compliant |
| Size | 1.2 x 0.8 x 0.6 |
| Other | |
| Cd [max] | 5 |
| Configuration | single |
| IF [max] | 250 |
| IFRM | 1000 |
| IFSM [max] | 4.5 |
| IR [max] | 150@VR=250V |
| trr [max] | 50 |
| VF [max] | 1100@IF=100mA |
| VR [max] | 300 |
