EPCOS - TDK ElectronicsGermany
VARISTOR 47V 300A 1210
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage47 V
Max AC voltage30 VMax
Max DC voltage38 VMax
Surge current300 AMax
Energy2 JMax
| Power | |
|---|---|
| Current - Surge | 300 A |
| Varistor Voltage (Max) | 51.7 V |
| Varistor Voltage (Min) | 42.3 V |
| Varistor Voltage (Typ) | 47 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 2000 pF @ 1 kHz |
| Environment and package | |
| Mounting Type | Surface Mount, MLCV |
| Operating Temperature | -55°C~125°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

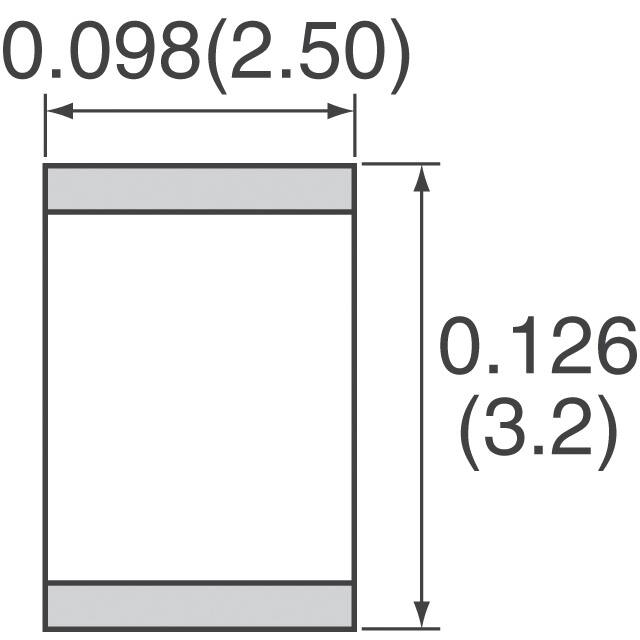

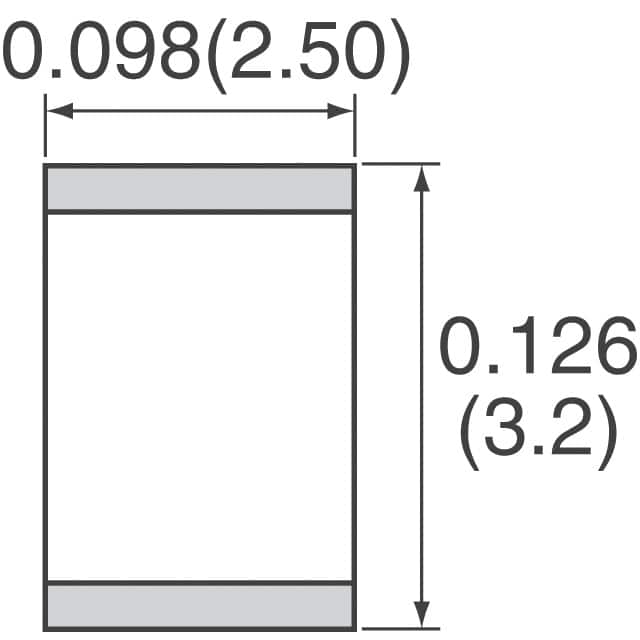

| Package / Case | 1210 (3225 Metric) |
| Other | |
| Energy | 2J |
| Maximum AC Volts | 30 V |
| Maximum DC Volts | 38 V |
| Mfr | EPCOS - TDK Electronics |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | Standard |
