EPCOS - TDK ElectronicsGermany

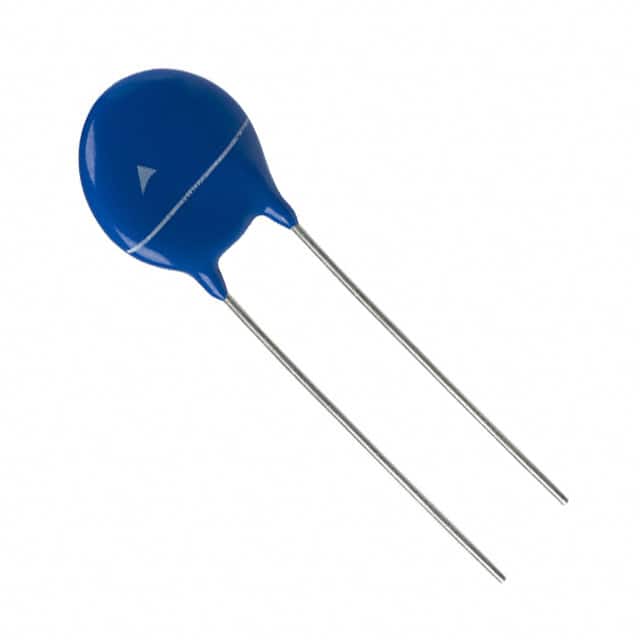

VARISTOR 750V 5KA DISC 14MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage750 V
Max AC voltage460 VMax
Max DC voltage615 VMax
Surge current5 kAMax
Energy150 JMax
| Power | |
|---|---|
| Current - Surge | 5 kA |
| Varistor Voltage (Max) | 825 V |
| Varistor Voltage (Min) | 675 V |
| Varistor Voltage (Typ) | 750 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 260 pF @ 1 kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C(TA) |
| Package | Bulk |
| Package / Case | Disc 14mm |
| Other | |
| Base Product Number | B72214S |
| Energy | 150J |
| Maximum AC Volts | 460 V |
| Maximum DC Volts | 615 V |
| Mfr | EPCOS - TDK Electronics |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | AdvanceD |
