EPCOS - TDK ElectronicsGermany

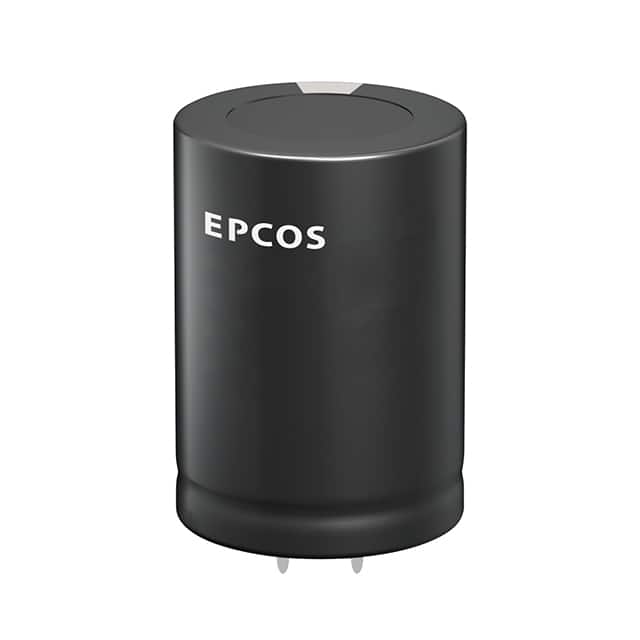

CAP ALUM 270UF 20% 400V SNAP
All alternatives
View full reportTechnical parameters
Key specs
Capacitance270 µF
Rated voltage400 V
Tolerance20 %
ESR240 mΩMax · 100Hz
Lifetime10 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 400 V |
| AC and DC characteristics | |
| Impedance | 280 mOhms |
| Ripple Current @ Low Frequency | 2 A @ 100 Hz |
| Environment and package | |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 270 µF |
| ESR (Equivalent Series Resistance) | 240mOhm @ 100Hz |
| Lead Spacing | 0.394" (10.00mm) |
| Mfr | EPCOS - TDK Electronics |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | B43540 |
| Tolerance | ±20% |
