Mornsun America, LLCChina

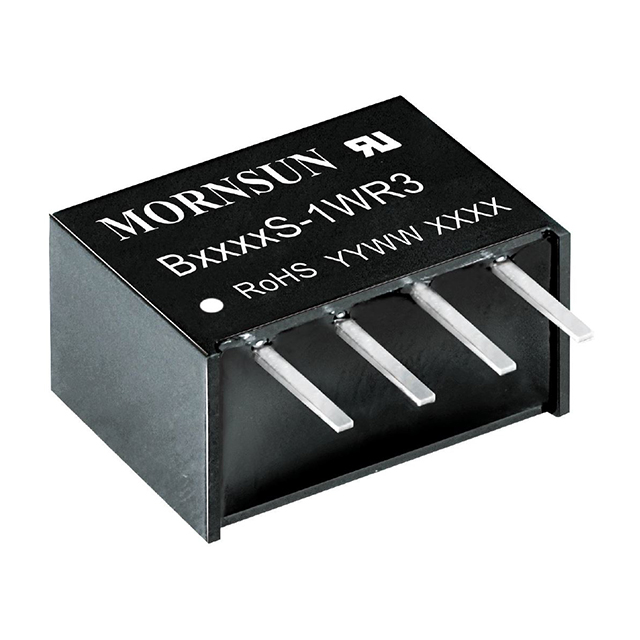

DC DC CONVERTER 5V 1W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage21.6 ~ 26.4 V
Output voltage5 V
Output current200 mAMax
Power1 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Input (Max) | 26.4V |
| Voltage - Input (Min) | 21.6V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Package | Tube |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, UL |
| Control Features | - |
| Efficiency | 79% |
| Features | - |
| Mfr | Mornsun America, LLC |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | B_S-1WR3 (1W) |
| Standard Number | 62368-1 |
| Type | Isolated Module |
