CanthermCanada

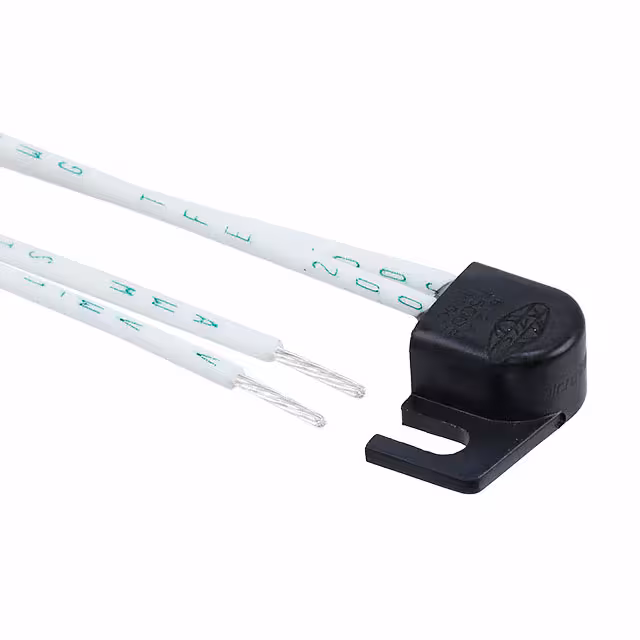

THERMOSTAT 155DEG C SPST-NO WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating - AC | 1.6A (250V) |
| Current Rating - DC | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Bag |
| Package / Case | Housed Sensor |
| Reset Temperature | 257°F(125°C) |
| Switching Temperature | 311°F(155°C) |
| Other | |
| Circuit | SPST-NO |
| Mfr | Cantherm |
| Product Status | Active |
| Series | B12 |
| Switching Cycles | 5K |
| Termination Style | Wire Leads - 4" (101.6mm) |
| Tolerance | ±9°F (±5°C) |
