Vishay General Semiconductor - Diodes DivisionUnited States

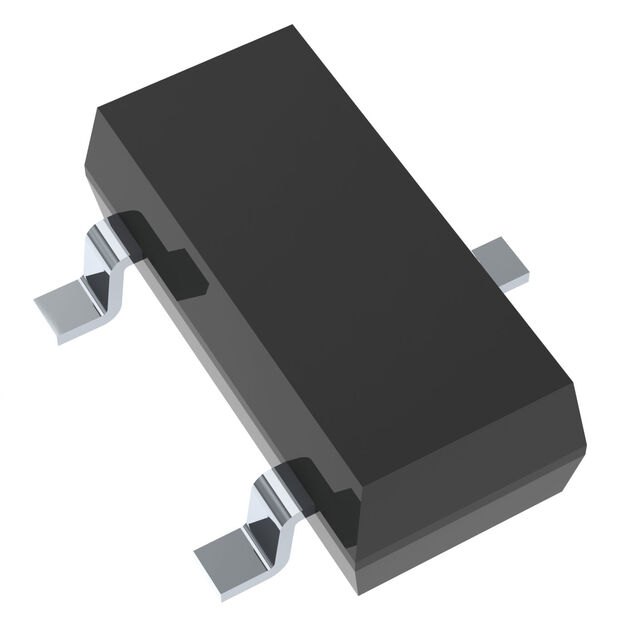

AZ23C5V1-HE3-08
Zener Diode ArraysDIODE ZENER 5.1V 300MW SOT23
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 800 mV |
| Power - Max | 300 mW |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 60 Ohms |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOT-23-3 |
| Other | |
| Base Product Number | AZ23C5V1 |
| Configuration | 1 Pair Common Anode |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Series | AZ23 |
| Tolerance | ±5% |
