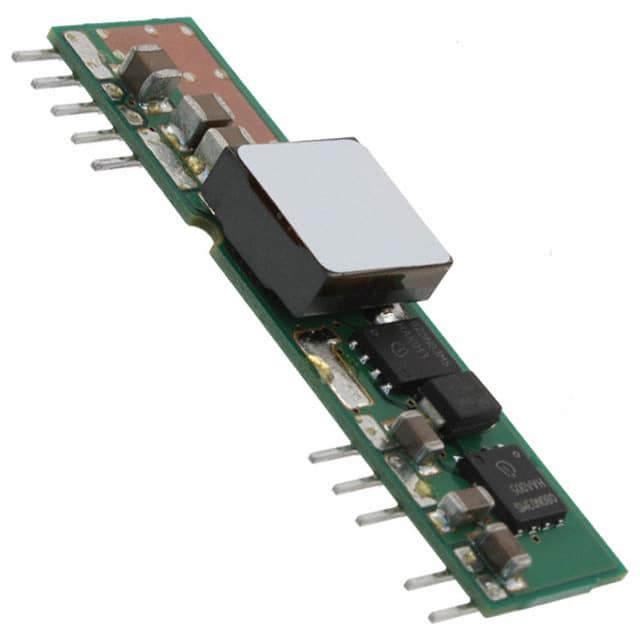

DC DC CONVERTER 5-15V 70W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage20 ~ 30 V
Output voltage5 ~ 15 V
Output current4.5 AMax
Power70 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 4.5A |
| Power (Watts) | 70 W |
| Voltage - Input (Max) | 30V |
| Voltage - Input (Min) | 20V |
| Voltage - Output 1 | 5 ~ 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Package / Case | 10-SIP Module |
| Size / Dimension | 2.00" L x 0.32" W x 0.50" H (50.8mm x 8.1mm x 12.7mm) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | AXB070 |
| Control Features | Enable, Active High |
| Efficiency | 97% |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Mfr | ABB Power Electronics Inc. |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | Austin Lynx™ (70W) |
| Type | Non-Isolated PoL Module |
