Abracon LLCUnited States
CERAMIC RES 6.0000MHZ 22PF SMD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency | 6 MHz |
| Frequency Stability | ±0.5% |
| Frequency Tolerance | ±0.3% |
| Impedance | 30 Ohms |
| Environment and package | |
| Height | 0.083" (2.10mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 3-SMD, Non-Standard |

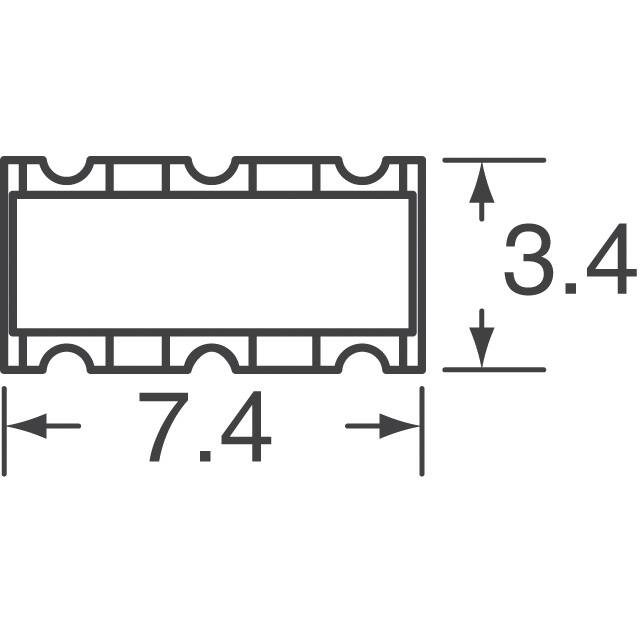

| Size / Dimension | 0.291" L x 0.134" W (7.40mm x 3.40mm) |
| Other | |
| Capacitance | 22 pF |
| Features | Built in Capacitor |
| Mfr | Abracon LLC |
| Product Status | Obsolete |
| Series | AWSCR-MGD |
| Type | Ceramic |
