Abracon LLCUnited States

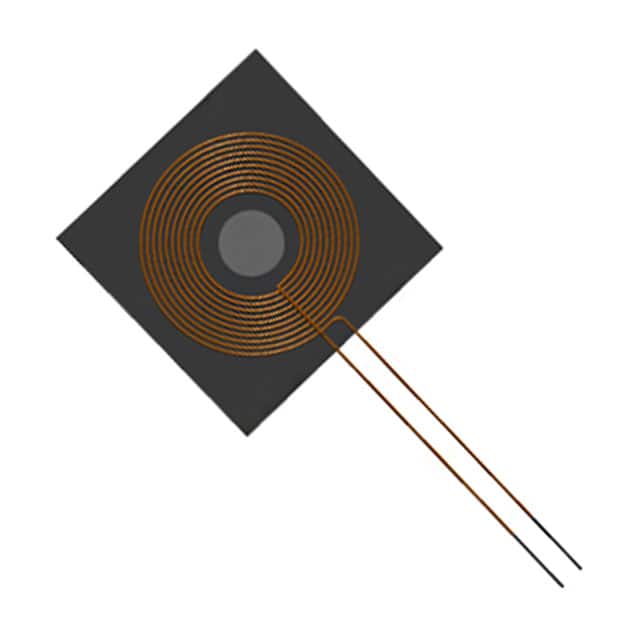

RECEIVER COIL, 1 COIL, 10UH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Environment and package | |
| Operating Temperature | -25°C~85°C |
| Package | Box |
| Size / Dimension | 1.46" Dia x 0.07" H (37.0mm x 1.8mm) |
| Other | |
| DC Resistance (DCR) | 160mOhm |
| Function | Receiver |
| Inductance | 10µH |
| Mfr | Abracon LLC |
| Product Status | Obsolete |
| Q @ Freq | 38 @ 100kHz |
| Series | AWCCA |
| Tolerance | ±10% |
| Type | 1 Coil, 1 Layer |
