PanasonicJapan

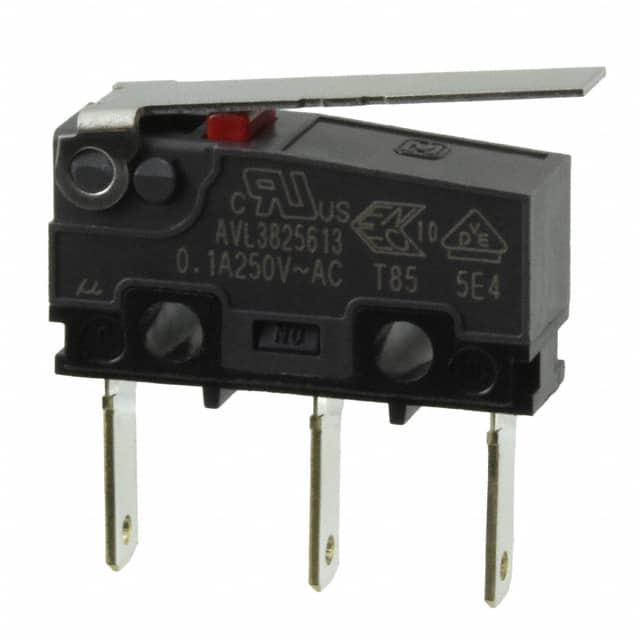

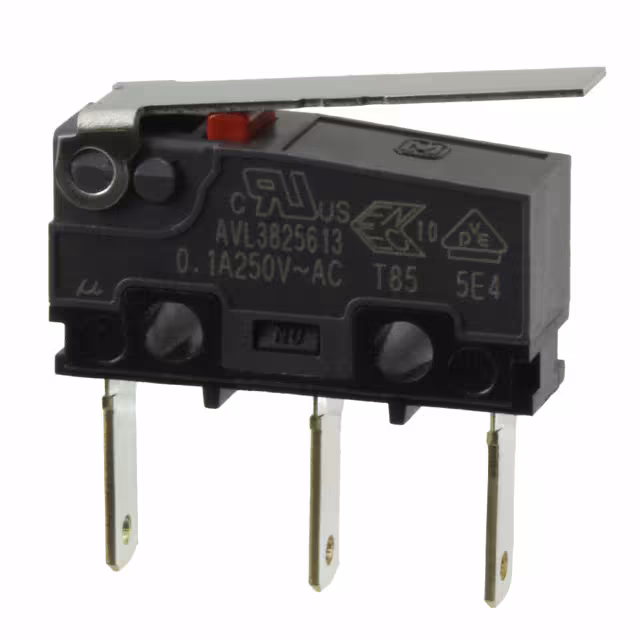

SWITCH SNAP ACT SPDT 100MA 125V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 100mA (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C~85°C |
| Package | Bulk |
| Other | |
| Actuator Type | Lever, Straight |
| Base Product Number | AVL382 |
| Circuit | SPDT |
| Differential Travel | 0.032" (0.81mm) |
| Electrical Life | 200,000 Cycles |
| Features | - |
| Ingress Protection | - |
| Mechanical Life | 10,000,000 Cycles |
| Mfr | Panasonic Electric Works |
| Operating Force | 55gf |
| Operating Position | 0.345" (8.8mm) |
| Overtravel | 0.047" (1.2mm) |
| Pretravel | 0.110" (2.8mm) |
| Product Status | Active |
| Release Force | 3.500gf |
| Series | AVL3 |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
