Advanced Thermal Solutions Inc.United States

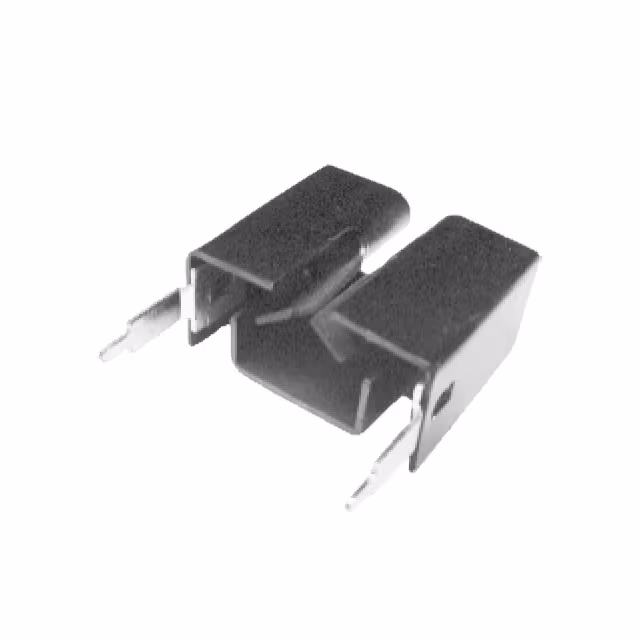

HEATSINK TO-220 W/TAB BLACK
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.390" (9.91mm) |
| Package | Bulk |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 10.50°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 21.20°C/W |
| Other | |
| Attachment Method | Clip and PC Pin |
| Diameter | - |
| Length | 0.752" (19.10mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Advanced Thermal Solutions Inc. |
| Product Status | Obsolete |
| Series | - |
| Shape | Rectangular, Fins |
| Type | Board Level, Vertical |
| Width | 0.860" (21.84mm) |
