Advanced Thermal Solutions Inc.United States

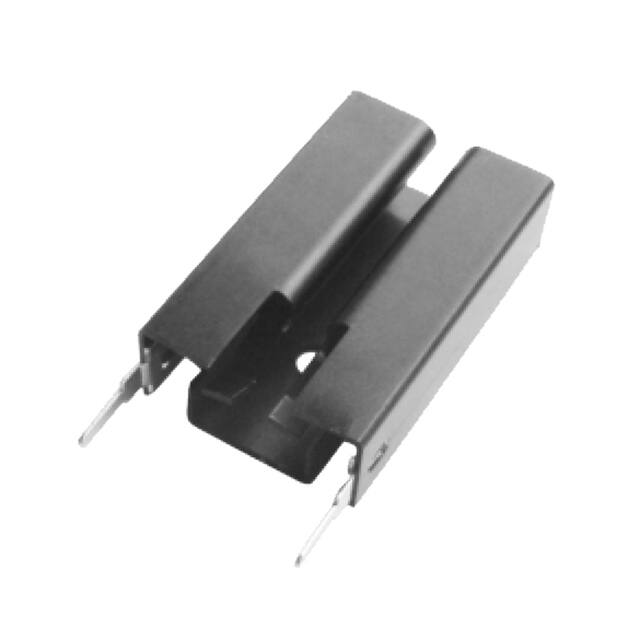

HEATSINK TO-220 W/TABS
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.395" (10.03mm) |
| Package | Bulk |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 11.00°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 16.00°C/W |
| Other | |
| Attachment Method | Bolt On and PC Pin |
| Diameter | - |
| Length | 1.375" (34.93mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Advanced Thermal Solutions Inc. |
| Product Status | Obsolete |
| Series | - |
| Shape | Rectangular, Fins |
| Type | Board Level, Vertical |
| Width | 0.860" (21.84mm) |
Documents
No documents are linked to this part yet.
