Advanced Thermal Solutions Inc.United States

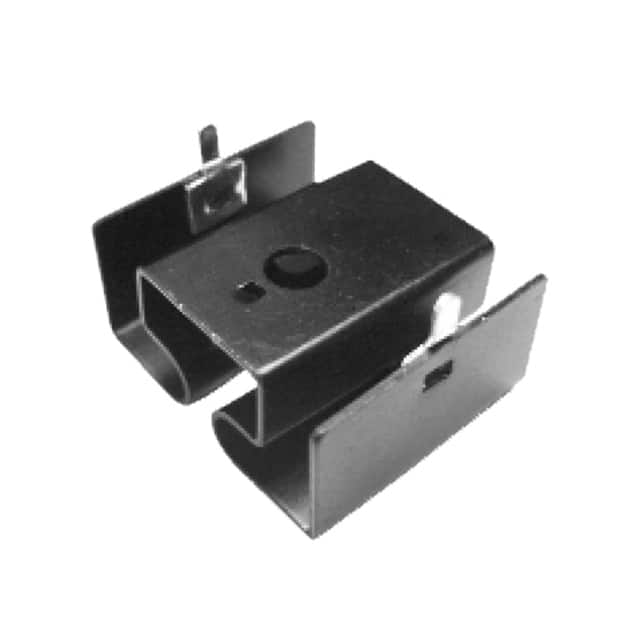

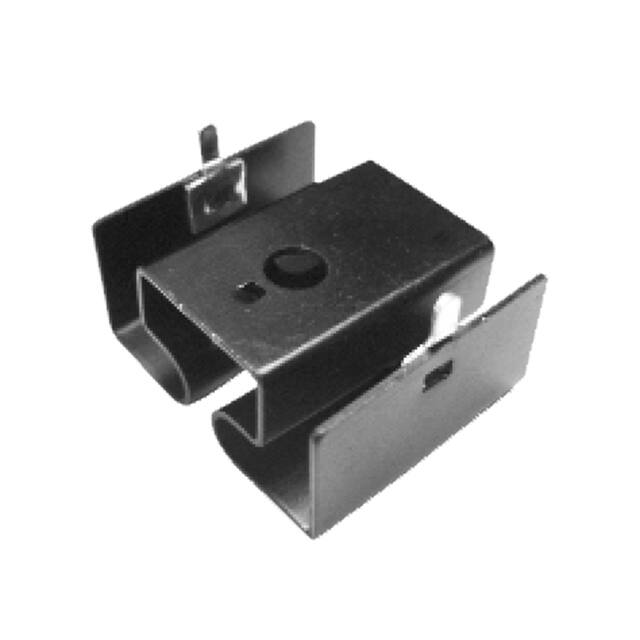

HEATSINK TO220 HOR MNT W/TAB
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.400" (10.16mm) |
| Package | Bulk |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 11.00°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 23.20°C/W |
| Other | |
| Attachment Method | Bolt On |
| Diameter | - |
| Length | 0.742" (18.85mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Advanced Thermal Solutions Inc. |
| Product Status | Obsolete |
| Series | - |
| Shape | Rectangular, Fins |
| Type | Board Level |
| Width | 0.860" (21.84mm) |
Documents
No documents are linked to this part yet.
