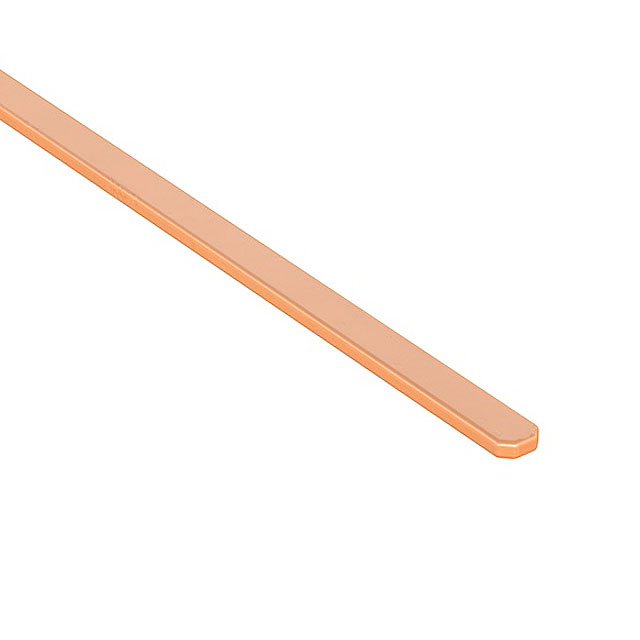

ATS-HP-F8L400S16W-433
Advanced Thermal Solutions Inc.United States

ATS-HP-F8L400S16W-433

Heat Pipes, Vapor Chambers

HEAT PIPE FLAT 4.7X10.31X400MM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Power - Cooling19.8W @ 400mm
Environment and package
Height0.185" (4.70mm)
Operating Temperature30°C ~ 120°C
Thermal Resistance-
Other
Attachment MethodEpoxy or Solder
Base Product NumberATS-HP-F8
Diameter-
Length15.748" (400.00mm)
ManufacturerAdvanced Thermal Solutions Inc.
MaterialCopper
Minimum Bend Radius-
PackagingBulk
Part StatusActive
Platform-
Series-
ShapeFlat
TypeHeat Pipe
Wick TypeSintered
Width0.406" (10.31mm)
Working FluidDistilled Water

Documents

No documents are linked to this part yet.
