Analog Technologies, Inc.United States

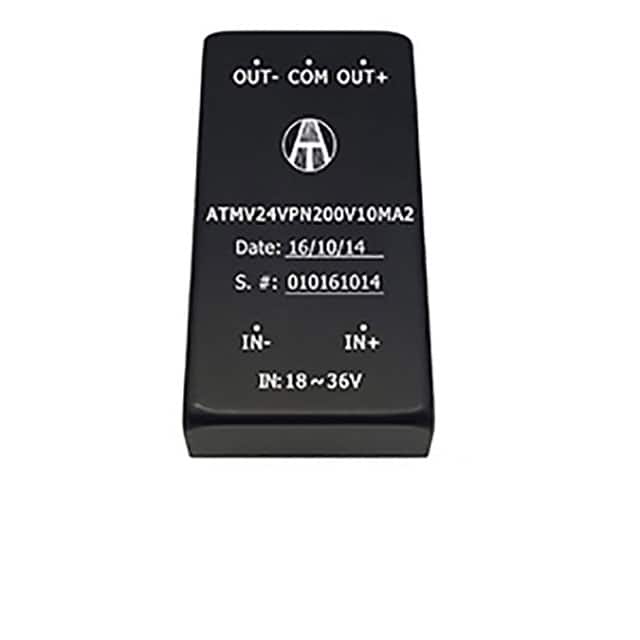

Mini Isolated 2W DC-DC Converter
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 36 V
Output voltage200 V
Output current10 mAMax
Power4 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 10mA, 10mA |
| Power (Watts) | 4 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 200V |
| Voltage - Output 2 | -200V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C(WithDerating) |
| Package | Tray |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Control Features | - |
| Efficiency | 74% |
| Features | - |
| Mfr | Analog Technologies, Inc. |
| Number of Outputs | 2 |
| Product Status | Active |
| Series | - |
| Standard Number | - |
| Type | Isolated Module |
